6.1.3 Design Example 3: Analog and Digital Microphone Combination System

The system can be formed as desired with analog and digital PDM microphones combined. In this case, each input goes through design example 1 and 2, and is gradually sent to the decimation filter.

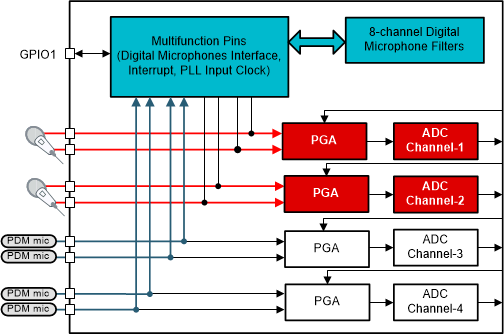

GUID-D1C09A08-FFBA-44D4-8804-56E85232B646-low.gifFigure 6-4 Combination Microphones System Block Diagram
