6.10 Typical Characteristics

Typical values at 25°C, AIN = -1 dBFS, FIN = 347 MHz, FS = 1600 MSPS, High power mode, FG calibration, JMODE 0, C-PLL off, C-PLLREF = 50 MHz and VA11Q and VCLK11 noise suppression on when C-PLL on, Quad Channel operation, nominal supply voltages, unless otherwise noted. SNR results exclude DC and HD2 to HD9; SINAD, ENOB, and SFDR results exclude DC.

ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 DNL vs Code
Figure 6-1 DNL vs Code

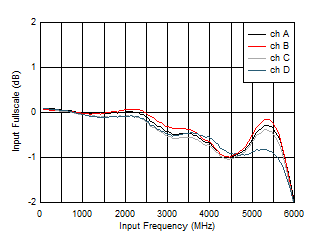

ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 Input Fullscale vs Frequency
Relative to 0Hz
Figure 6-3 Input Fullscale vs Frequency

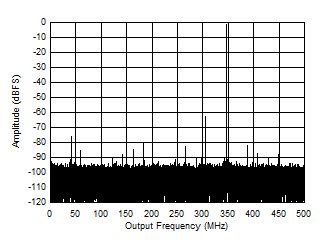

ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 Single Tone FFT at 347 MHz and -1 dBFS
High power mode, C-PLL on
Figure 6-5 Single Tone FFT at 347 MHz and -1 dBFS

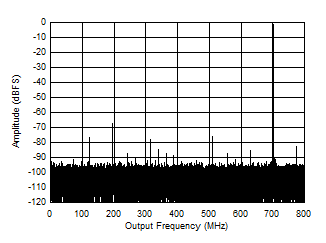

ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 Single Tone FFT at 847 MHz and -1 dBFS
High power mode
Figure 6-7 Single Tone FFT at 847 MHz and -1 dBFS

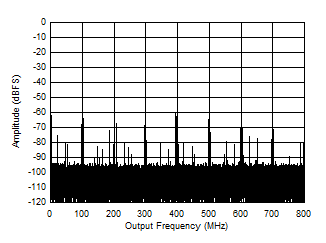

ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 Single Tone FFT at 997 MHz and -1 dBFS
High power mode, C-PLL on, Noise suppression off
Figure 6-9 Single Tone FFT at 997 MHz and -1 dBFS

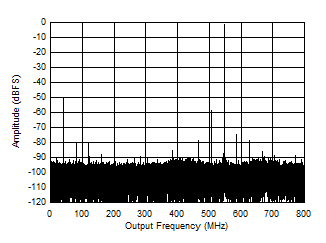

ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 Single Tone FFT at 3797 MHz and -1 dBFS
High power mode
Figure 6-11 Single Tone FFT at 3797 MHz and -1 dBFS
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 Single Tone FFT at 347 MHz and -1 dBFS
C-PLL on, Low power mode, FS = 1000 MSPS
Figure 6-13 Single Tone FFT at 347 MHz and -1 dBFS
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 Single Tone FFT at 2097 MHz and -1 dBFS
Low power mode, FS = 1000 MSPS
Figure 6-15 Single Tone FFT at 2097 MHz and -1 dBFS

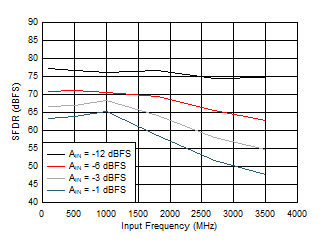

ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 SFDR vs Input Frequency
Figure 6-17 SFDR vs Input Frequency
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 SINAD vs Input Frequency
Figure 6-19 SINAD vs Input Frequency

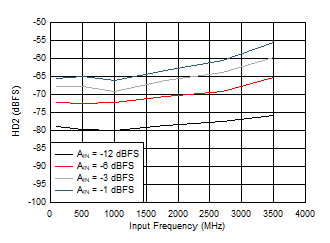

ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 HD2 vs Input Frequency
Figure 6-21 HD2 vs Input Frequency

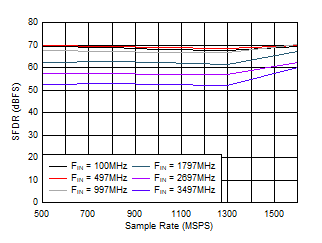

ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 SFDR vs Sample Rate
Figure 6-23 SFDR vs Sample Rate
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 SINAD vs Sample Rate
Figure 6-25 SINAD vs Sample Rate

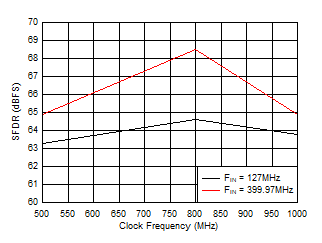

ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 SFDR vs Sample Rate
Low power mode
Figure 6-27 SFDR vs Sample Rate
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 SFDR vs Sample Rate
Low power mode
Figure 6-29 SFDR vs Sample Rate
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 ENOB vs Sample Rate
Low power mode
Figure 6-31 ENOB vs Sample Rate

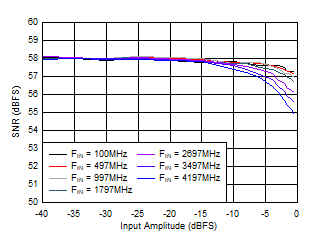

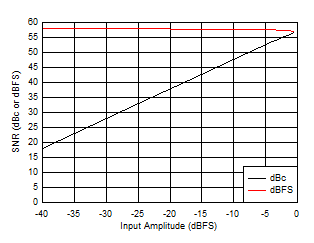

ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 SNR vs AIN
Figure 6-33 SNR vs AIN
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 SNR vs AIN
FIN = 100MHz, Low power mode
Figure 6-35 SNR vs AIN

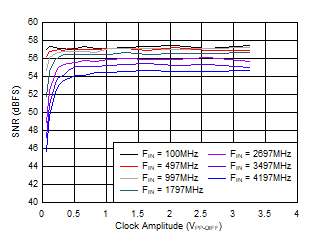

ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 SNR vs ACLK
Figure 6-37 SNR vs ACLK

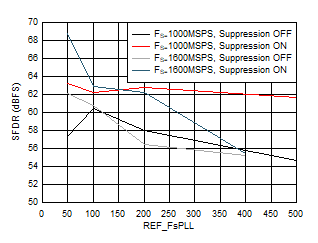

ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 SFDR vs FREF and Suppression
FIN = 397MHz
Figure 6-39 SFDR vs FREF and Suppression

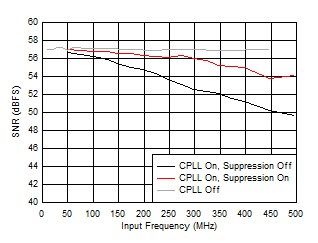

ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 SNR vs FIN and C-PLL modes
Figure 6-41 SNR vs FIN and C-PLL modes

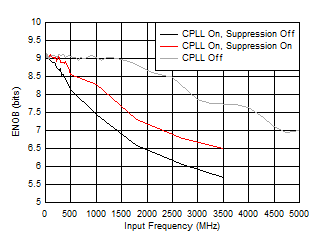

ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 ENOB vs FIN and C-PLL modes
Figure 6-43 ENOB vs FIN and C-PLL modes
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 SNR vs FIN and C-PLL modes
Low power mode
Figure 6-45 SNR vs FIN and C-PLL modes
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 ENOB vs FIN and C-PLL modes
Low power mode
Figure 6-47 ENOB vs FIN and C-PLL modes

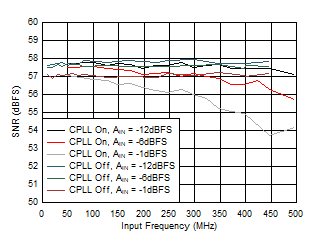

ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 SNR vs AIN and C-PLL
Figure 6-49 SNR vs AIN and C-PLL
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 ENOB vs AIN and C-PLL
Figure 6-51 ENOB vs AIN and C-PLL

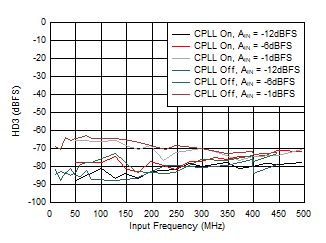

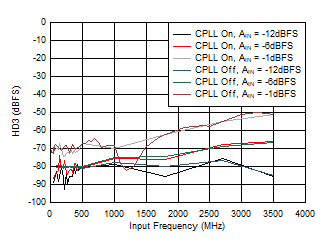

ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 HD3 vs AIN and C-PLL
Figure 6-53 HD3 vs AIN and C-PLL
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 SNR vs AIN and C-PLL
Low power mode
Figure 6-55 SNR vs AIN and C-PLL
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 ENOB vs AIN and C-PLL
Low power mode
Figure 6-57 ENOB vs AIN and C-PLL
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 HD3 vs AIN and C-PLL
Low power mode
Figure 6-59 HD3 vs AIN and C-PLL

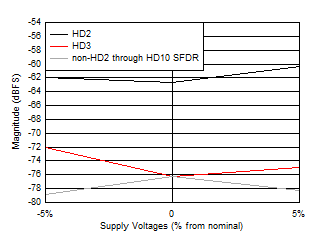

ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 HD2, HD3 and Worst non-HD Spur vs Supply Voltage
All supplies changed together, high power mode
Figure 6-61 HD2, HD3 and Worst non-HD Spur vs Supply Voltage
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 HD2, HD3 and Worst non-HD Spur vs Supply Voltage
All supplies changed together, low power mode, FS = 1000MSPS
Figure 6-63 HD2, HD3 and Worst non-HD Spur vs Supply Voltage

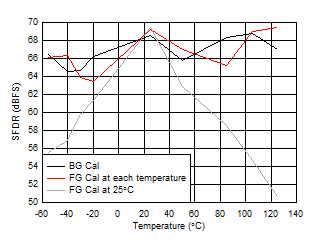

ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 SFDR vs Temperature
Figure 6-65 SFDR vs Temperature
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 HD3 vs Temperature
Figure 6-67 HD3 vs Temperature
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 Two Tone FFT at 498MHz
10MHz tone spacing
Figure 6-69 Two Tone FFT at 498MHz

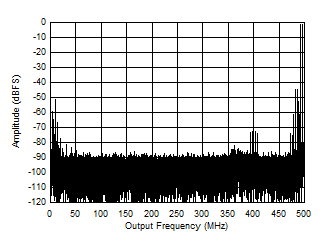

ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 Two Tone FFT at 3498MHz
10MHz tone spacing
Figure 6-71 Two Tone FFT at 3498MHz
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 Two Tone FFT at 1798 MHz
10 MHz tone spacing, -7 dBFS per tone, Low power mode, 1000MSPS
Figure 6-73 Two Tone FFT at 1798 MHz

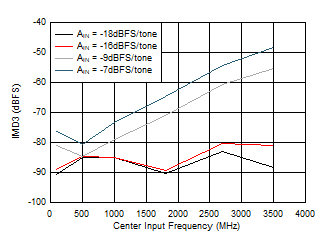

ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 IMD3 vs FIN
10MHz tone spacing
Figure 6-75 IMD3 vs FIN
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 Crosstalk to Channel A vs FIN
Figure 6-77 Crosstalk to Channel A vs FIN

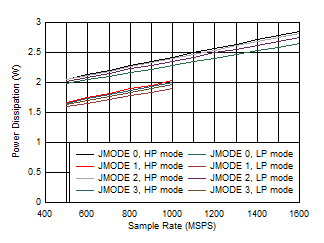

ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 Quad Channel, Power Dissipation vs FS and JMODES 0 - 3
Low power background calibration mode
Figure 6-79 Quad Channel, Power Dissipation vs FS and JMODES 0 - 3

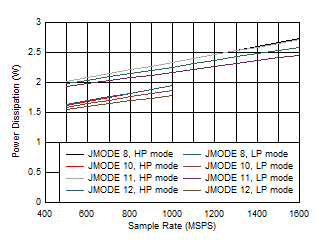

ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 Quad Channel, Power Dissipation vs FS and JMODE 8 - 12
Low power background calibration mode
Figure 6-81 Quad Channel, Power Dissipation vs FS and JMODE 8 - 12
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 Quad Channel, IVA19 vs FS
Low power background calibration mode, independent of JMODE
Figure 6-83 Quad Channel, IVA19 vs FS
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 Quad Channel, IVD11 vs FS and JMODE 0 - 3
Low power background calibration mode, independent of power mode
Figure 6-85 Quad Channel, IVD11 vs FS and JMODE 0 - 3
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 Quad Channel, IVD11 vs FS and JMODE 8 - 12
Low power background calibration mode, independent of power mode
Figure 6-87 Quad Channel, IVD11 vs FS and JMODE 8 - 12
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 Dual Channel, Power Dissipation vs FS and JMODE 0 - 3
Low power background calibration mode
Figure 6-89 Dual Channel, Power Dissipation vs FS and JMODE 0 - 3
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 Dual Channel, Power Dissipation vs FS and JMODE 8 - 12
Low power background calibration mode
Figure 6-91 Dual Channel, Power Dissipation vs FS and JMODE 8 - 12

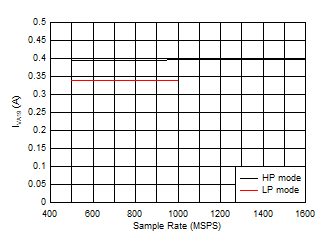

ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 Dual Channel, IVA19 vs FS
Low power background calibration mode, independent of JMODE
Figure 6-93 Dual Channel, IVA19 vs FS
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 Dual Channel, Power Dissipation vs FS and JMODE 0 - 3
Low power background calibration mode, independent of power mode
Figure 6-95 Dual Channel, Power Dissipation vs FS and JMODE 0 - 3

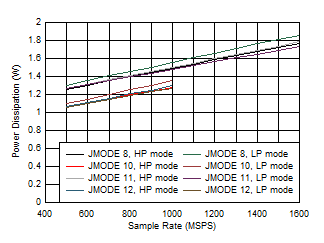

ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 Dual Channel, Power Dissipation vs FS and JMODE 8 - 12
Low power background calibration mode, independent of power mode
Figure 6-97 Dual Channel, Power Dissipation vs FS and JMODE 8 - 12
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 Single Channel, Power Dissipation vs FS and JMODE 0 - 3
Low power background calibration mode
Figure 6-99 Single Channel, Power Dissipation vs FS and JMODE 0 - 3

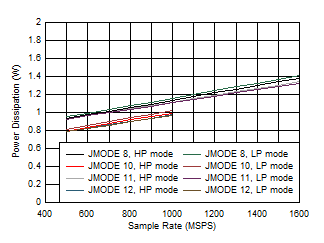

ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 Single Channel, Power Dissipation vs FS and JMODE 8 - 12
Low power background calibration mode
Figure 6-101 Single Channel, Power Dissipation vs FS and JMODE 8 - 12
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 Single Channel, IVA19 vs FS
Low power background calibration mode, independent of JMODE
Figure 6-103 Single Channel, IVA19 vs FS
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 Single Channel, IVD11 vs FS and JMODE 0 - 3
Low power background calibration mode
Figure 6-105 Single Channel, IVD11 vs FS and JMODE 0 - 3
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 Single Channel, IVD11 vs FS and JMODE 8 - 12
Low power background calibration mode
Figure 6-107 Single Channel, IVD11 vs FS and JMODE 8 - 12

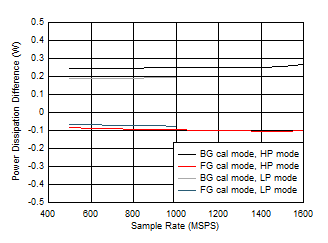

ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 Quad Channel, Power Dissipation Change with Calibration Mode
Difference to lower power background calibration, JMODE independent
Figure 6-109 Quad Channel, Power Dissipation Change with Calibration Mode
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 Single Channel, Power Dissipation Change with Calibration Mode
Difference to lower power background calibration, JMODE independent
Figure 6-111 Single Channel, Power Dissipation Change with Calibration Mode
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 Dual Channel, IVA19 Change with Calibration Mode
Difference to lower power background calibration, JMODE independent
Figure 6-113 Dual Channel, IVA19 Change with Calibration Mode

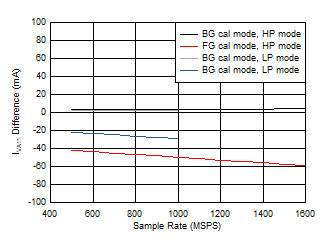

ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 Quad Channel, IVA11 Change with Calibration Mode
Difference to lower power background calibration, JMODE independent
Figure 6-115 Quad Channel, IVA11 Change with Calibration Mode
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 Single Channel, IVA11 Change with Calibration Mode
Difference to lower power background calibration, JMODE independent
Figure 6-117 Single Channel, IVA11 Change with Calibration Mode
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 Dual Channel, IVD11 Change with Calibration Mode
Difference to lower power background calibration, JMODE independent
Figure 6-119 Dual Channel, IVD11 Change with Calibration Mode
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 Quad Channel, Power Dissipation vs Temperature
Figure 6-121 Quad Channel, Power Dissipation vs Temperature
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 Single Channel, Power Dissipation vs Temperature
Figure 6-123 Single Channel, Power Dissipation vs Temperature
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 Background Calibration Core Transition (offset voltage)
BG Calibration, input voltage offset ~ 90% of fullscale, ADC_SRC_DLY=31, MUX_DLY=30
Figure 6-125 Background Calibration Core Transition (offset voltage)

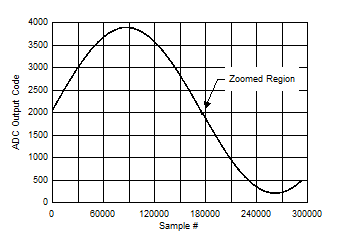

ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 Background Calibration Core Transition (AC Signal Zoomed)
BG Calibration, ADC_SRC_DLY=31, MUX_DLY=30, unzoomed region shown in previous plot
Figure 6-127 Background Calibration Core Transition (AC Signal Zoomed)
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 INL vs Code
Figure 6-2 INL vs Code
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 Single Tone FFT at 347 MHz and -1 dBFS
High power mode
Figure 6-4 Single Tone FFT at 347 MHz and -1 dBFS
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 Single Tone FFT at 347 MHz and -1 dBFS
High power mode, C-PLL on, Noise suppression off
Figure 6-6 Single Tone FFT at 347 MHz and -1 dBFS
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 Single Tone FFT at 997 MHz and -1 dBFS
High power mode, C-PLL on
Figure 6-8 Single Tone FFT at 997 MHz and -1 dBFS
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 Single Tone FFT at 1797 MHz and -1 dBFS
High power mode
Figure 6-10 Single Tone FFT at 1797 MHz and -1 dBFS
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 Single Tone FFT at 347 MHz and -1 dBFS
Low power mode, FS = 1000 MSPS
Figure 6-12 Single Tone FFT at 347 MHz and -1 dBFS
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 Single Tone FFT at 897 MHz and -1 dBFS
Low power mode, FS = 1000 MSPS
Figure 6-14 Single Tone FFT at 897 MHz and -1 dBFS
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 Single Tone FFT at 3797 MHz and -1 dBFS
Low power mode, FS = 1000 MSPS
Figure 6-16 Single Tone FFT at 3797 MHz and -1 dBFS
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 SNR vs Input Frequency
Figure 6-18 SNR vs Input Frequency

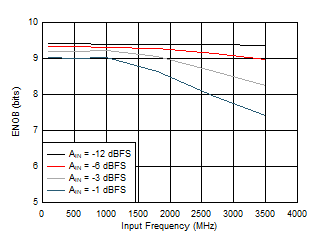

ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 ENOB vs Input Frequency
Figure 6-20 ENOB vs Input Frequency

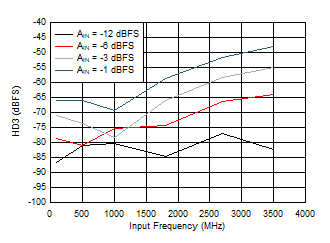

ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 HD3 vs Input Frequency
Figure 6-22 HD3 vs Input Frequency
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 SNR vs Sample Rate
Figure 6-24 SNR vs Sample Rate
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 ENOB vs Sample Rate
Figure 6-26 ENOB vs Sample Rate
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 SNR vs Sample Rate
Low power mode
Figure 6-28 SNR vs Sample Rate
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 SINAD vs Sample Rate
Low power mode
Figure 6-30 SINAD vs Sample Rate
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 SFDR vs AIN
Figure 6-32 SFDR vs AIN
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 SFDR vs AIN
FIN = 100MHz, Low power mode
Figure 6-34 SFDR vs AIN
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 SFDR vs ACLK
Figure 6-36 SFDR vs ACLK
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 SNR vs FREF and Suppression
FIN = 397MHz
Figure 6-38 SNR vs FREF and Suppression

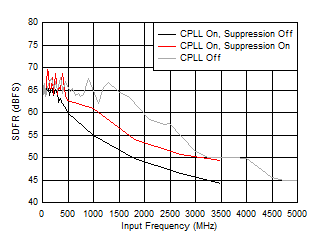

ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 SFDR vs FIN and C-PLL modes
Figure 6-40 SFDR vs FIN and C-PLL modes

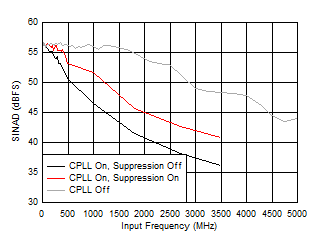

ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 SINAD vs FIN and C-PLL modes
Figure 6-42 SINAD vs FIN and C-PLL modes
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 SFDR vs FIN and C-PLL modes
Low power mode
Figure 6-44 SFDR vs FIN and C-PLL modes
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 SINAD vs FIN and C-PLL modes
Low power mode
Figure 6-46 SINAD vs FIN and C-PLL modes

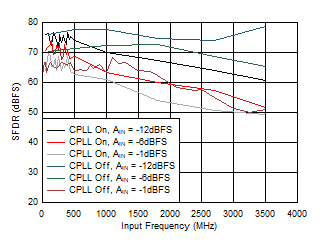

ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 SFDR vs AIN and C-PLL
Figure 6-48 SFDR vs AIN and C-PLL
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 SINAD vs AIN and C-PLL
Figure 6-50 SINAD vs AIN and C-PLL

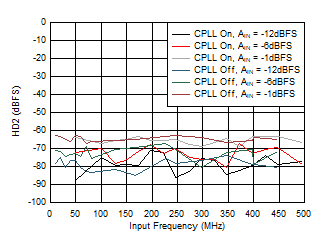

ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 HD2 vs AIN and C-PLL
Figure 6-52 HD2 vs AIN and C-PLL
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 SFDR vs AIN and C-PLL
Low power mode
Figure 6-54 SFDR vs AIN and C-PLL
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 SINAD vs AIN and C-PLL
Low power mode
Figure 6-56 SINAD vs AIN and C-PLL
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 HD2 vs AIN and C-PLL
Low power mode
Figure 6-58 HD2 vs AIN and C-PLL
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 SNR, SFDR and SINAD vs Supply Voltage
All supplies changed together, high power mode
Figure 6-60 SNR, SFDR and SINAD vs Supply Voltage
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 SNR, SFDR and SINAD vs Supply Voltages
All supplies changed together, low power mode, FS = 1000MSPS
Figure 6-62 SNR, SFDR and SINAD vs Supply Voltages
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 SNR vs Temperature
Figure 6-64 SNR vs Temperature

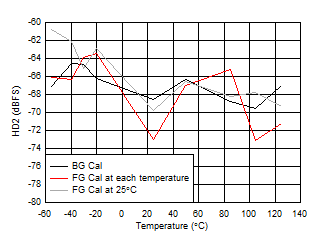

ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 HD2 vs Temperature
Figure 6-66 HD2 vs Temperature
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 Worst Spur vs Temperature
Worst spur is non-HD2 though -HD10 SDFR
Figure 6-68 Worst Spur vs Temperature
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 Two Tone FFT at 1798MHz
10MHz tone spacing
Figure 6-70 Two Tone FFT at 1798MHz
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 Two Tone FFT at 348 MHz
10 MHz tone spacing, -7 dBFS per tone, Low power mode, 1000MSPS
Figure 6-72 Two Tone FFT at 348 MHz
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 Two Tone FFT at 3498 MHz
10 MHz tone spacing, -7 dBFS per tone, Low power mode, 1000MSPS
Figure 6-74 Two Tone FFT at 3498 MHz
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 IMD3 vs FIN
10MHz tone spacing, Low power mode, 1000MSPS
Figure 6-76 IMD3 vs FIN
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 Crosstalk to Channel B vs FIN
Figure 6-78 Crosstalk to Channel B vs FIN

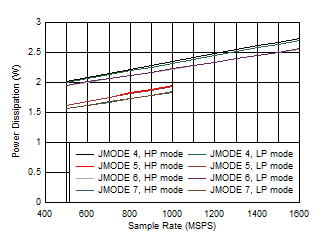

ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 Quad Channel, Power Dissipation vs FS and JMODE 4 - 7
Low power background calibration mode
Figure 6-80 Quad Channel, Power Dissipation vs FS and JMODE 4 - 7
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 Quad Channel, Power Dissipation vs FS and JMODE 13 - 15
Low power background calibration mode
Figure 6-82 Quad Channel, Power Dissipation vs FS and JMODE 13 - 15

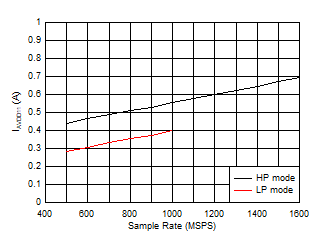

ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 Quad Channel, IVA11 vs FS
Low power background calibration mode, independent of JMODE
Figure 6-84 Quad Channel, IVA11 vs FS

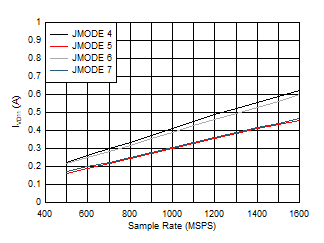

ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 Quad Channel, IVD11 vs FS and JMODE 4 - 7
Low power background calibration mode, independent of power mode
Figure 6-86 Quad Channel, IVD11 vs FS and JMODE 4 - 7

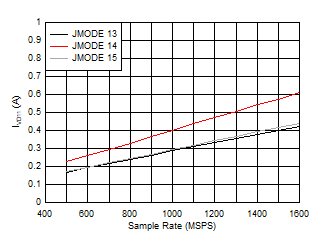

ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 Quad Channel, IVD11 vs FS and JMODE 13 - 15
Low power background calibration mode, independent of power mode
Figure 6-88 Quad Channel, IVD11 vs FS and JMODE 13 - 15

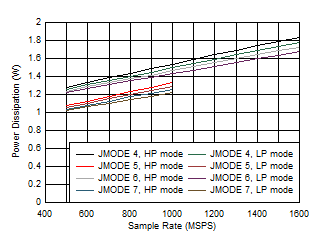

ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 Dual Channel, Power Dissipation vs FS and JMODE 4 - 7
Low power background calibration mode
Figure 6-90 Dual Channel, Power Dissipation vs FS and JMODE 4 - 7

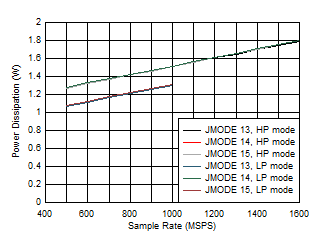

ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 Dual Channel, Power Dissipation vs FS and JMODE 13 - 15
Low power background calibration mode
Figure 6-92 Dual Channel, Power Dissipation vs FS and JMODE 13 - 15

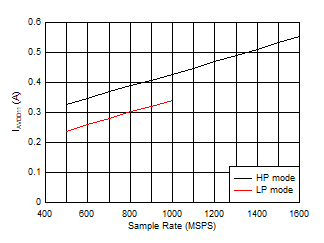

ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 Dual Channel, IVA11 vs FS
Low power background calibration mode, independent of JMODE
Figure 6-94 Dual Channel, IVA11 vs FS
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 Dual Channel, Power Dissipation vs FS and JMODE 4 - 7
Low power background calibration mode, independent of power mode
Figure 6-96 Dual Channel, Power Dissipation vs FS and JMODE 4 - 7
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 Dual Channel, Power Dissipation vs FS and JMODE 13 - 15
Low power background calibration mode, independent of power mode
Figure 6-98 Dual Channel, Power Dissipation vs FS and JMODE 13 - 15
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 Single Channel, Power Dissipation vs FS and JMODE 4 - 7
Low power background calibration mode
Figure 6-100 Single Channel, Power Dissipation vs FS and JMODE 4 - 7

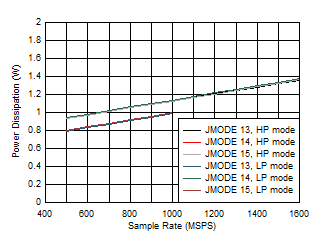

ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 Single Channel, Power Dissipation vs FS and JMODE 13 - 15
Low power background calibration mode
Figure 6-102 Single Channel, Power Dissipation vs FS and JMODE 13 - 15
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 Single Channel, IVA11 vs FS
Low power background calibration mode, independent of JMODE
Figure 6-104 Single Channel, IVA11 vs FS

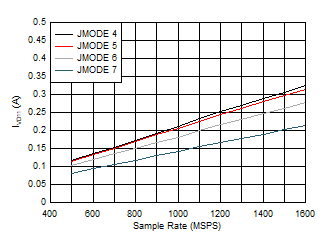

ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 Single Channel, IVD11 vs FS and JMODE 4 - 7
Low power background calibration mode
Figure 6-106 Single Channel, IVD11 vs FS and JMODE 4 - 7
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 Single Channel, IVD11 vs FS and JMODE 13 - 15
Low power background calibration mode
Figure 6-108 Single Channel, IVD11 vs FS and JMODE 13 - 15
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 Dual Channel, Power Dissipation Change with Calibration Mode
Difference to lower power background calibration, JMODE independent
Figure 6-110 Dual Channel, Power Dissipation Change with Calibration Mode
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 Quad Channel, IVA19 Change with Calibration Mode
Difference to lower power background calibration, JMODE independent
Figure 6-112 Quad Channel, IVA19 Change with Calibration Mode

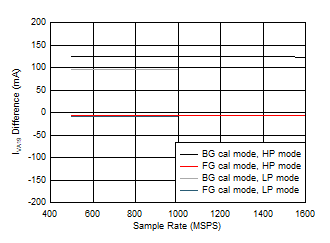

ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 Single Channel, IVA19 Change with Calibration Mode
Difference to lower power background calibration, JMODE independent
Figure 6-114 Single Channel, IVA19 Change with Calibration Mode
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 Dual Channel, IVA11 Change with Calibration Mode
Difference to lower power background calibration, JMODE independent
Figure 6-116 Dual Channel, IVA11 Change with Calibration Mode
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 Quad Channel, IVD11 Change with Calibration Mode
Difference to lower power background calibration, JMODE independent
Figure 6-118 Quad Channel, IVD11 Change with Calibration Mode
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 Single Channel, IVD11 Change with Calibration Mode
Difference to lower power background calibration, JMODE independent
Figure 6-120 Single Channel, IVD11 Change with Calibration Mode
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 Dual Channel, Power Dissipation vs Temperature
Figure 6-122 Dual Channel, Power Dissipation vs Temperature
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 Background Calibration Core Transition (midscale voltage)
BG Calibration, midscale input voltage, ADC_SRC_DLY=31, MUX_DLY=30
Figure 6-124 Background Calibration Core Transition (midscale voltage)
ADC12QJ1600 ADC12DJ1600 ADC12SJ1600 Background Calibration Core Transition (AC Signal)
BG Calibration, ADC_SRC_DLY=31, MUX_DLY=30, zoomed region shown in next plot
Figure 6-126 Background Calibration Core Transition (AC Signal)
