8.3.4.4 Decimation Filter

The ADC354x supports complex decimation by 2, 4, 8, 16 and 32 with a pass-band bandwidth of ~ 80% and a stopband rejection of at least 85 dB. Table 8-3 gives an overview of the pass-band bandwidth of the different decimation settings with respect to ADC sampling rate FS. In real decimation mode the output bandwidth is half of the complex bandwidth.

Table 8-3 Decimation Filter Summary and Maximum Available Output Bandwidth
REAL/COMPLEX DECIMATIONDECIMATION SETTING NOUTPUT RATEOUTPUT BANDWIDTHOUTPUT RATE
(FS = 65 MSPS)		OUTPUT BANDWIDTH
(FS = 65 MSPS)
Complex2FS / 2 complex0.8 × FS / 232.5 MSPS complex26 MHz
4FS / 4 complex0.8 × FS / 416.25 MSPS complex13 MHz
8FS / 8 complex0.8 × FS / 88.125 MSPS complex6.5 MHz
16FS / 16 complex0.8 × FS / 164.0625 MSPS complex3.25 MHz
32FS / 32 complex0.8 × FS / 322.03125 MSPS complex1.625 MHz
Real2FS / 2 real0.4 × FS / 232.5 MSPS13 MHz
4FS / 4 real0.4 × FS / 416.25 MSPS6.5 MHz
8FS / 8 real0.4 × FS / 88.125 MSPS3.25 MHz
16FS / 16 real0.4 × FS / 164.0625 MSPS1.625 MHz
32FS / 32 real0.4 × FS / 322.03125 MSPS0.8125 MHz

The decimation filter responses are normalized to the ADC sampling clock frequency FS and illustrated in Figure 8-25 to Figure 8-34. They are interpreted as follows:

Each figure contains the filter pass-band, transition band(s) and alias or stop-band(s) as shown in Figure 8-24. The x-axis shows the offset frequency (after the NCO frequency shift) normalized to the ADC sampling rate FS.

For example, in the divide-by-4 complex setup, the output data rate is FS / 4 complex with a Nyquist zone of FS / 8 or 0.125 × FS. The transition band (colored in blue) is centered around 0.125 × FS and the alias transition band is centered at 0.375 × FS. The stop-bands (colored in red), which alias on top of the pass-band, are centered at 0.25 × FS and 0.5 × FS. The stop-band attenuation is greater than 85 dB.

GUID-0A8EF049-9108-4475-A7EF-DC34B9AF77D9-low.gifFigure 8-24 Interpretation of the Decimation Filter Plots
GUID-3973E731-F677-479E-98A9-06DD084ABD39-low.gifFigure 8-25 Decimation by 2 complex frequency response
GUID-ACC485DA-6C8F-416F-9582-6CC1F8C9183F-low.gifFigure 8-27 Decimation by 4 complex frequency response

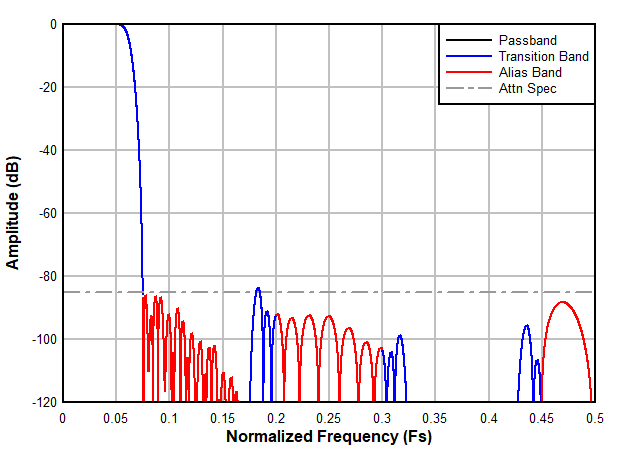

GUID-AED7EDD4-277C-48D6-8AF4-2AFAB9EFBE4D-low.gifFigure 8-29 Decimation by 8 complex frequency response
GUID-AC6D8439-BFA4-47EA-8447-3955D3E0F314-low.gifFigure 8-31 Decimation by 16 complex frequency response
GUID-6E0A6005-B83F-4437-B99C-330AB19D1201-low.gifFigure 8-33 Decimation by 32 complex frequency response

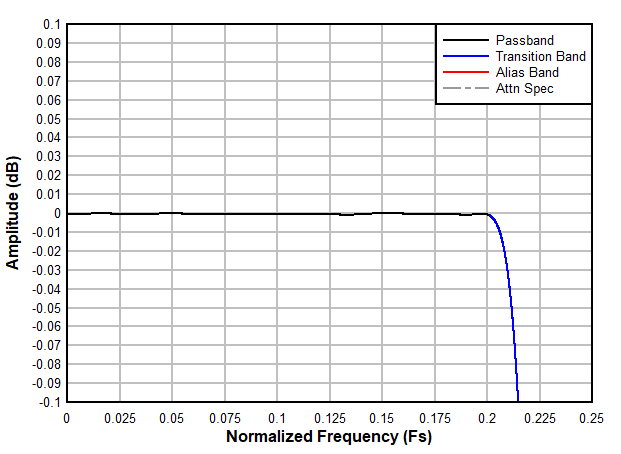

GUID-AC41EF1C-BBDA-4F5C-AEB9-5AC3A8842150-low.gifFigure 8-26 Decimation by 2 complex passband ripple response
GUID-C89BBCF3-3F04-47E8-8C07-23D2C6D527EB-low.gifFigure 8-28 Decimation by 4 complex passband ripple response
GUID-EF2D3A37-B062-43D2-AB28-F64DF0E949E4-low.gifFigure 8-30 Decimation by 8 complex passband ripple response
GUID-6810BA1C-F566-48F4-AC80-5B013A5E7501-low.gifFigure 8-32 Decimation by 16 complex passband ripple response

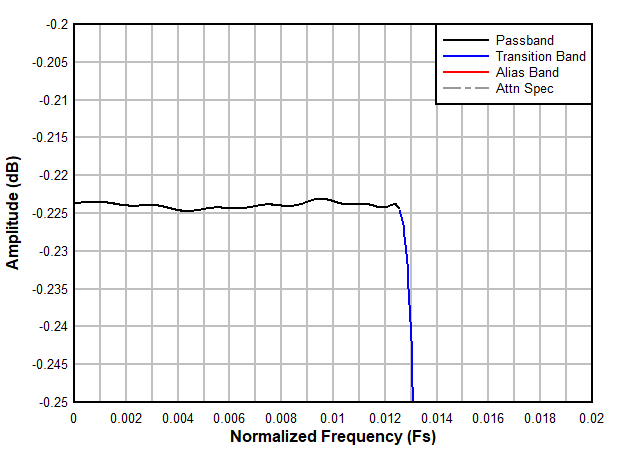

GUID-2F7ED31B-A4A8-4488-A813-D1E5E01B85D6-low.gifFigure 8-34 Decimation by 32 complex passband ripple response
