9.2.3 Application Curves

The following FFT plots show the performance of THS4541 driving the ADC354x operated at 65 MSPS with a full-scale input at -1 dBFS with input frequencies at 1, 5, 10 and 20 MHz.


SNR = 78.7 dBFS, SFDR = 90 dBc
Figure 9-2 Single Tone FFT at FIN = 1 MHz

SNR = 78.0 dBFS, SFDR = 92 dBc

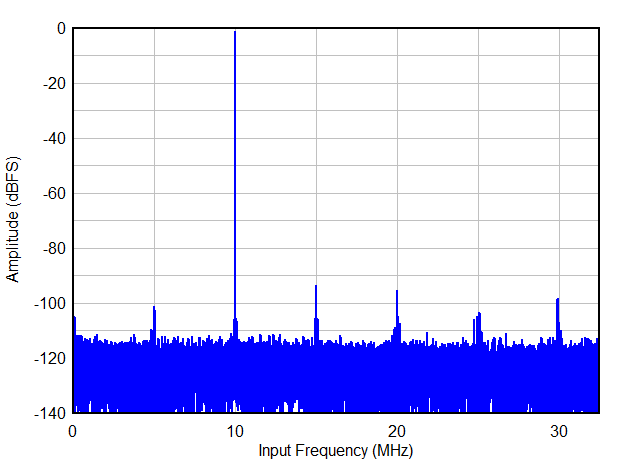

Figure 9-4 Single Tone FFT at FIN = 10 MHz

SNR = 78.6 dBFS, SFDR = 96 dBc
Figure 9-3 Single Tone FFT at FIN = 5 MHz

SNR = 75.9 dBFS, SFDR = 81 dBc

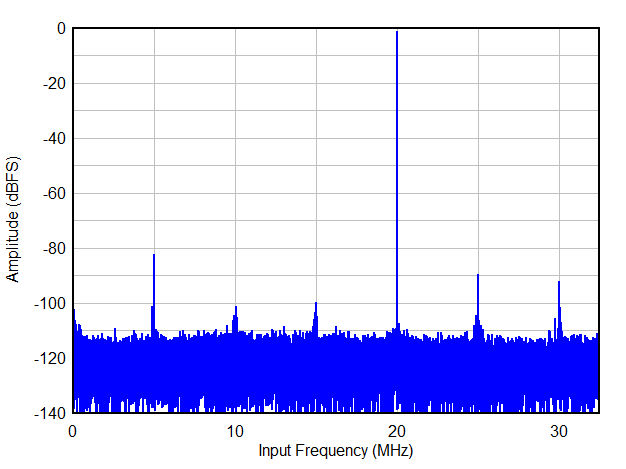

Figure 9-5 Single Tone FFT at FIN = 20 MHz
