7.9 Typical Characteristics

At TA = 25°C, High-Speed mode, AVDD = 5 V, DVDD = 1.8 V, IOVDD = 3.3 V, fCLK = 27 MHz, VREFP = 2.5 V,
and VREFN = 0 V, unless otherwise noted.
ADS1278-SP tc_fft_hs_05db_bas367.gif
Figure 3. Output Spectrum
ADS1278-SP tc_fft_hs_short_bas367.gif
Figure 5. Output Spectrum
ADS1278-SP tc_fft_hr_05db_bas367.gif
Figure 7. Output Spectrum
ADS1278-SP tc_fft_hr_short_bas367.gif
Figure 9. Output Spectrum
ADS1278-SP tc_fft_lp_05db_bas367.gif
Figure 11. Output Spectrum
ADS1278-SP tc_fft_lp_short_bas367.gif
Figure 13. Output Spectrum
ADS1278-SP tc_fft_ls_05db_bas367.gif
Figure 15. Output Spectrum
ADS1278-SP tc_fft_ls_short_bas367.gif
Figure 17. Output Spectrum
ADS1278-SP tc_thd-freq_hs_bas367.gif
Figure 19. Total Harmonic Distortion vs Frequency
ADS1278-SP tc_thd-freq_hr_bas367.gif
Figure 21. Total Harmonic Distortion vs Frequency
ADS1278-SP tc_thd-freq_lp_bas367.gif
Figure 23. Total Harmonic Distortion vs Frequency
ADS1278-SP tc_thd-freq_ls_bas367.gif
Figure 25. Total Harmonic Distortion vs Frequency

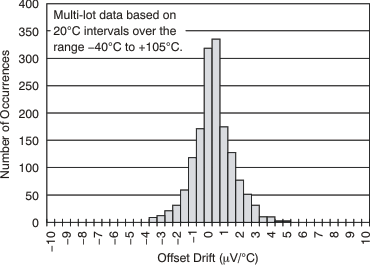

ADS1278-SP tc_hist_offset_dft_bas367.gif
Figure 27. Offset Drift Histogram
ADS1278-SP tc_offset_warmup_bas367.gif
Figure 29. Offset Warmup Drift Response Band

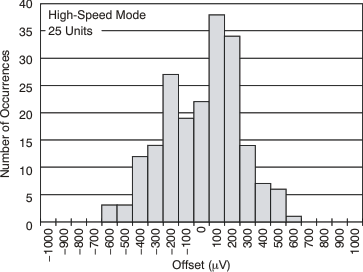

ADS1278-SP tc_hist_offset_err_bas367.gif
Figure 31. Offset Error Histogram
ADS1278-SP tc_hist_gain_match_bas367.gif
Figure 33. Channel Gain Match Histogram
ADS1278-SP off_gain_bas447.gif
Figure 35. Offset and Gain vs Temperature
ADS1278-SP tc_hist_samp_match_bas367.gif
Figure 37. Sampling Match Error Histogram
ADS1278-SP analog_ip_bas447.gif
Figure 39. Analog Input Differential Impedance vs Temperature
ADS1278-SP INL_t_bas447.gif
Figure 41. Integral Nonlinearity vs Temperature
ADS1278-SP tc_lin_thd-vref_bas367.gif
Figure 43. Linearity and Total Harmonic Distortion vs Reference Voltage
ADS1278-SP Noise_t_bas447.gif
Figure 45. Noise vs Temperature
ADS1278-SP tc_thd_noise-clk_bas367.gif
Figure 47. Total Harmonic Distortion and Noise vs CLK
ADS1278-SP tc_psr-freq_bas367.gif
Figure 49. Power-Supply Rejection vs Power-Supply Frequency
ADS1278-SP DVDD_t_bas447.gif
Figure 51. DVDD Current vs Temperature
ADS1278-SP PD_t_bas447.gif
Figure 53. Power Dissipation vs Temperature
ADS1278-SP tc_fft_hs_20db_bas367.gif
Figure 4. Output Spectrum
ADS1278-SP tc_hist_hs_bas367.gif
Figure 6. Noise Histogram
ADS1278-SP tc_fft_hr_20db_bas367.gif
Figure 8. Output Spectrum
ADS1278-SP tc_hist_hr_bas367.gif
Figure 10. Noise Histogram
ADS1278-SP tc_fft_lp_20db_bas367.gif
Figure 12. Output Spectrum
ADS1278-SP tc_hist_lp_bas367.gif
Figure 14. Noise Histogram
ADS1278-SP tc_fft_ls_20db_bas367.gif
Figure 16. Output Spectrum
ADS1278-SP tc_hist_ls_bas367.gif
Figure 18. Noise Histogram
ADS1278-SP tc_thd-amp_hs_bas367.gif
Figure 20. Total Harmonic Distortion vs Input Amplitude
ADS1278-SP tc_thd-amp_hr_bas367.gif
Figure 22. Total Harmonic Distortion vs Input Amplitude
ADS1278-SP tc_thd-amp_lp_bas367.gif
Figure 24. Total Harmonic Distortion vs Input Amplitude
ADS1278-SP tc_thd-amp_ls_bas367.gif
Figure 26. Total Harmonic Distortion vs Input Amplitude
ADS1278-SP tc_hist_gain_dft_bas367.gif
Figure 28. Gain Drift Histogram
ADS1278-SP tc_gain_warmup_bas367.gif
Figure 30. Gain Warmup Drift Response Band
ADS1278-SP tc_hist_gain_err_bas367.gif
Figure 32. Gain Error Histogram
ADS1278-SP tc_hist_offs_match_bas367.gif
Figure 34. Channel Offset Match Histogram

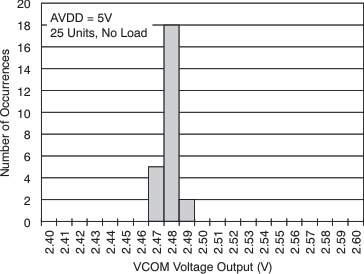

ADS1278-SP tc_hist_vcom_bas367.gif
Figure 36. VCOM Voltage Output Histogram
ADS1278-SP ref_ip_t_bas447.gif
Figure 38. Reference Input Differential Impedance vs Temperature
ADS1278-SP analog2_ip_bas447.gif
Figure 40. Analog Input Differential Impedance vs Temperature

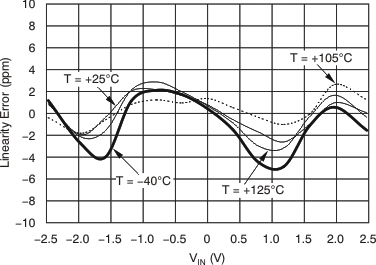

ADS1278-SP tc_le-input_level_bas367.gif
Figure 42. Linearity Error vs Input Level
ADS1278-SP tc_noise_lin-vcm_bas367.gif
Figure 44. Noise and Linearity vs Input Common-Mode Voltage
ADS1278-SP tc_noise-vref_bas367.gif
Figure 46. Noise vs Reference Voltage
ADS1278-SP tc_cmr-fin_bas367.gif
Figure 48. Common-Mode Rejection vs Input Frequency
ADS1278-SP AVDD_t_bas447.gif
Figure 50. AVDD Current vs Temperature
ADS1278-SP IOVDD_t_bas447.gif
Figure 52. IOVDD Current vs Temperature
