8.4.1.1 Pulse-Sync Mode

In pulse-sync mode, when a synchronization occurs (by pin or command), the ADS1283 unconditionally stops and restarts the conversion process. When the ADC synchronizes, the device resets the internal filter memory, DRDY goes high, and after the digital filter has settled, new conversion data are available as shown in Figure 45 and Table 12.

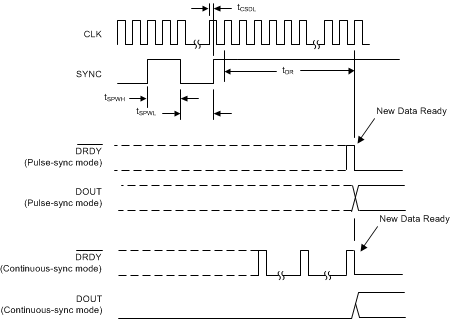

ADS1283 ai_tim_sync_sbas565.gifFigure 45. Pulse-Sync and Continuous-Sync Timing With Single Synchronization

Table 12. Pulse-Sync Timing for Figure 45 and Figure 46

PARAMETER MIN MAX UNIT
tCSDL CLK rising edge to SYNC rising edge(2) 30 –30 ns
tSYNC SYNC clock period(1) 1 Infinite n / fDATA
tSPWH, L SYNC pulse width, high or low 2 1 / fCLK
tDR Time for data ready (SINC filter) See Table 13
Time for data ready (FIR filter) 62.98046875 / fDATA + 468 / fCLK
(1) Continuous-sync mode; a free-running clock applied to the SYNC input without causing resynchronization. See Figure 46
(2) CLK rising edge to SYNC rising edge timing must not occur within the specified time window.

Table 13. tDR Time for Data Ready (Sinc Filter)

fDATA (kSPS) fCLK CYCLES(1)
128 440
64 616
32 968
16 1672
8 2824
(1) For SYNC and WAKEUP commands, number of fCLK cycles from next rising CLK edge directly after eighth rising SCLK edge to DRDY falling edge. For WAKEUP command only, subtract two fCLK cycles.

Table 13 is referenced by Table 12 and Table 15.

Observe the timing restriction of SYNC rising edge to CLK rising edge as shown in Figure 45 and Table 12. Synchronization occurs on the next rising CLK edge after the rising edge of the SYNC, or after the eighth rising SCLK edge when synchronized by command. To synchronize multiple ADCs, broadcast the command to the ADCs simultaneously.
