6.8 Typical Characteristics

At +25°C, AVDD = 2.5 V, AVSS = –2.5 V, fCLK = 4.096 MHz, VREFP = 2.5 V, VREFN = –2.5 V, DVDD = 3.3 V, PGA = 1, OFFSET enabled, CHOP enabled, and fDATA = 1000 SPS (unless otherwise noted). For ADS1283A, the electrical characteristics apply at PGA = 1, 4, and 16 only.
ADS1283 C002_SBAS565.png
Figure 2. Output Spectrum
ADS1283 C004_SBAS565.png
Figure 4. Output Spectrum
ADS1283 C016_SBAS565.png
Figure 6. Output Spectrum
ADS1283 C018_SBAS565.png
Figure 8. Output Spectrum
ADS1283 C020_SBAS565.png
Figure 10. THD vs Signal Frequency
ADS1283 C006_SBAS565.png
Figure 12. CMR vs Common-Mode Frequency
ADS1283 C010_SBAS565.png
Figure 14. Offset-Voltage Histogram
ADS1283 C011_SBAS565.png
Figure 16. Gain-Error Histogram
ADS1283 C015_SBAS565.png
Figure 18. Gain-Match Histogram
ADS1283 C014_SBAS565.png
Figure 20. Crosstalk Output Spectrum
ADS1283 C022_SBAS565.png
Figure 22. Input Bias Current vs Input Voltage
ADS1283 C024_SBAS565.png

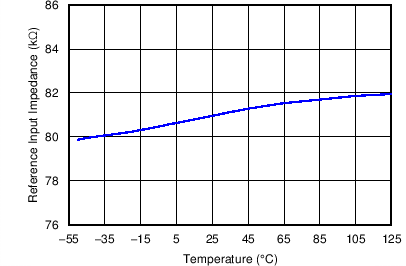

Figure 24. Reference Input Impedance vs Temperature
ADS1283 C003_SBAS565.png
Figure 3. Output Spectrum
ADS1283 C005_SBAS565.png
Figure 5. Output Spectrum
ADS1283 C017_SBAS565.png
Figure 7. Output Spectrum
ADS1283 C019_SBAS565.png
Figure 9. Output Spectrum
ADS1283 C007_SBAS565.png
Figure 11. THD vs Temperature
ADS1283 C021_SBAS565.png
Figure 13. PSR vs Power-Supply Frequency
ADS1283 C012_SBAS565.png
Figure 15. Offset-Voltage Drift Histogram
ADS1283 C013_SBAS565.png
Figure 17. Gain-Error Drift Histogram
ADS1283 C008_SBAS565.png
Figure 19. SNR vs Temperature
ADS1283 C009_SBAS565.png
Figure 21. Power vs Temperature
ADS1283 C023_SBAS565.png
Figure 23. Input Bias Current vs Input Voltage
