7.7 Switching Characteristics

over operating ambient temperature range, DVDD = 1.7 V to 3.6 V, and load on DOUT = 20 pF || 100 kΩ (unless otherwise noted)
PARAMETER 2.7 V ≤ DVDD ≤ 3.6 V 1.7 V ≤ DVDD ≤ 2.0 V UNIT
MIN MAX MIN MAX
tCSDOD Propagation delay time, CS falling edge to DOUT driven 10 20 ns
tDOST Propagation delay time, SCLK rising edge to valid new DOUT 17 32 ns
tDOHD Hold time, SCLK falling edge to invalid DOUT 10 10 ns
tCSDOZ Propagation delay time, CS rising edge to DOUT high impedance 10 20 ns
ADS131E08S tim_serial_bas561.gif

NOTE:

SPI settings are CPOL = 0 and CPHA = 1.

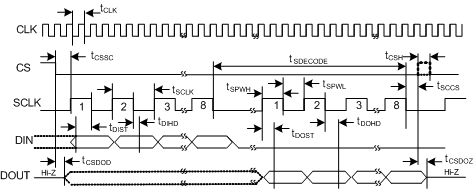

Figure 1. Serial Interface Timing
ADS131E08S tim_daisy_chain_bas561.gif
1. n = Number of channels × resolution + 24 bits. Number of channels is 8; resolution is 16-bit or 24-bit.
Figure 2. Daisy-Chain Interface Timing
