8.5.5 Parallel Configuration Details

The functions controlled by each parallel pin are described in Table 8-6, Table 8-7, and Table 8-8. A simple way of configuring the parallel pins is shown in #SBAS509IMG9242.

Table 8-6 SCLK Control Pin
VOLTAGE APPLIED ON SCLKDESCRIPTION
LowLow-speed mode is disabled
HighLow-speed mode is enabled#SBAS5334497
(1) Low-speed mode is enabled in the ADS4222/42 by default.
Table 8-7 SEN Control Pin
VOLTAGE APPLIED ON SENDESCRIPTION
0
(+50 mV/0 mV)		Twos complement and parallel CMOS output
(3/8) AVDD
(±50 mV)		Offset binary and parallel CMOS output
(5/8) 2AVDD
(±50 mV)		Offset binary and DDR LVDS output
AVDD
(0 mV/–50 mV)		Twos complement and DDR LVDS output
Table 8-8 CTRL1, CTRL2, and CTRL3 Pins
CTRL1CTRL2CTRL3DESCRIPTION
LowLowLowNormal operation
LowLowHighNot available
LowHighLowNot available
LowHighHighNot available
HighLowLowGlobal power-down
HighLowHighChannel A standby, channel B is active
HighHighLowNot available
HighHighHighMUX mode of operation, channel A and B data are multiplexed and output on the DB[13:0] pins.

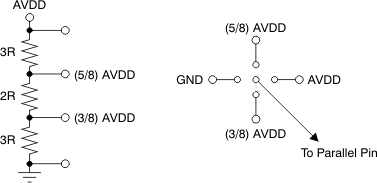

GUID-5BA64696-7FE2-4CBC-991A-5E853551CC53-low.gifFigure 8-16 Simple Scheme to Configure the Parallel Pins
