7.12.1 ADS4246

At TA = 25°C, AVDD = 1.8 V, DRVDD = 1.8 V, maximum rated sampling frequency, sine wave input clock, 1.5-VPP differential clock amplitude, 50% clock duty cycle, –1 dBFS differential analog input, High-Performance Mode disabled, 0-dB gain, DDR LVDS output interface, and 32k point FFT, unless otherwise noted.

GUID-2228FBE4-DD5C-4335-9199-B93ACB54DD11-low.pngFigure 7-6 FFT for 20-MHz Input Signal
GUID-E962E52C-0F0E-44C6-B8FB-696F24173AC5-low.pngFigure 7-8 FFT for 300-MHz Input Signal
GUID-97AEA494-7316-4825-9CCB-C0941705FDAA-low.pngFigure 7-10 FFT for Two-Tone Input Signal
GUID-F8068522-985C-425F-91E1-22C6FDBA6D8D-low.pngFigure 7-12 SNR vs Input Frequency
GUID-4EA799E6-6B53-4C33-BCF9-4EF36F611F50-low.pngFigure 7-14 SFDR vs Gain and Input Frequency
GUID-3EA9D7AE-81A0-49A0-AB8A-EB6BD3A2BC3C-low.pngFigure 7-16 Performance vs Input Amplitude
GUID-67E67CB7-1823-4004-9FF4-BD7A4E7B524F-low.pngFigure 7-18 Performance vs Input Common-Mode Voltage
GUID-8FA3995F-4BBD-4D92-AB7F-8EEADD87E216-low.pngFigure 7-20 SFDR vs Temperature and AVDD Supply
GUID-8A1BB7CD-E89E-4DCF-85C9-C78E22D38259-low.pngFigure 7-22 Performance vs DRVDD Supply Voltage
GUID-47E1740E-41A8-434D-8A55-1B4FB3EFC131-low.pngFigure 7-24 Performance vs Input Clock Amplitude
GUID-1C3CFA3B-B1B8-4057-89DC-5EF82FA3784A-low.pngFigure 7-26 Integrated Nonlinearity
GUID-760286CD-A4A3-4812-9CC8-2491548A02D3-low.pngFigure 7-7 FFT for 170-MHz Input Signal
GUID-B941D959-9198-427A-861E-CC9221A16E24-low.pngFigure 7-9 FFT for Two-tone Input Signal
GUID-552F4DB8-814C-4897-A268-EA57C172D940-low.pngFigure 7-11 SFDR vs Input Frequency
GUID-C94216F5-419E-481D-BFBE-F8988E6F41CD-low.pngFigure 7-13 SNR vs Input Frequency (CMOS)
GUID-4624AB09-783B-4829-8B2E-52847935A94B-low.pngFigure 7-15 SINAD vs Gain and Input Frequency
GUID-579CCF0C-81CC-46C9-97BC-C28A9A0F8AE7-low.pngFigure 7-17 Performance vs Input Amplitude
GUID-579CCF0C-81CC-46C9-97BC-C28A9A0F8AE7-low.pngFigure 7-19 Performance vs Input Common-Mode Voltage
GUID-DEB41616-5D96-49B2-AB34-BC694948C8AB-low.pngFigure 7-21 SNR vs Temperature and AVDD Supply
GUID-8B606EA7-E5FA-40F2-8D96-49BB231B48E2-low.pngFigure 7-23 Performance vs Input Clock Amplitude
GUID-6FF5C975-91B8-4687-B0A7-EE4D4FD311D8-low.pngFigure 7-25 Performance vs Input Clock Duty Cycle

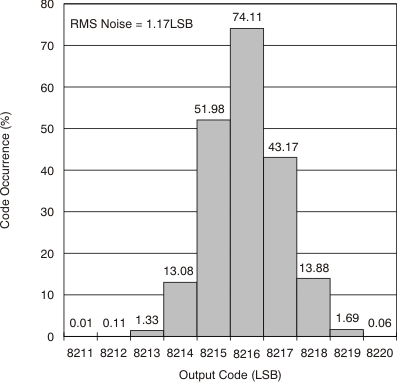

GUID-3A157B4F-CDE6-4582-924B-A58C2E1C9268-low.gifFigure 7-27 Output Noise Histogram (With Inputs Shorted to VCM)
