6.8 Timing Characteristics, Serial interface

see Figure 6-1MINNOMMAXUNIT
fSCLKSCLK frequency (equal to 1 / tSCLK)> dc20MHz
tSLOADSSEN to SCLK setup time25ns
tSLOADHSCLK to SEN hold time25ns
tDSUSDI setup time25ns
tDHSDI hold time25ns
Table 6-1 LVDS Timings Across Lower Sampling Frequencies
SAMPLING FREQUENCY (MSPS)SETUP TIME (ns)HOLD TIME (ns)
MINTYPMAXMINTYPMAX
2100.891.030.821.01
1851.061.210.951.15

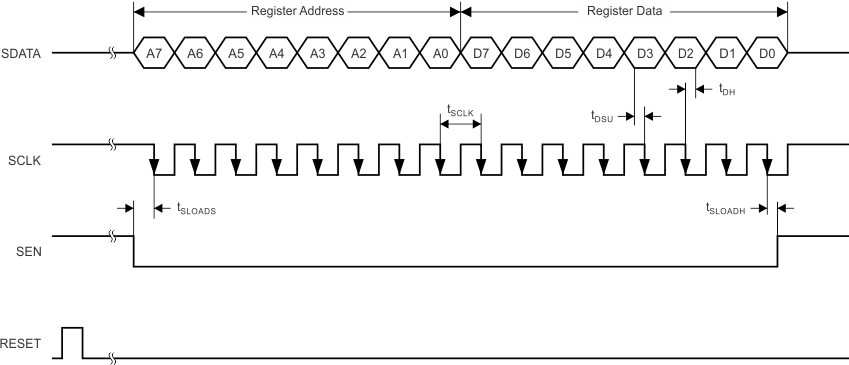

GUID-8A35CADD-5127-43DC-BE54-CED66F2A945E-low.gifFigure 6-1 Serial Interface Timing
