8.5 Application Curves

Figure 104 and Figure 105 show the differential impedance between the channel INP and INM pins. The impedance is modeled as a parallel combination of RIN and CIN (RIN || 1 / jwCIN).

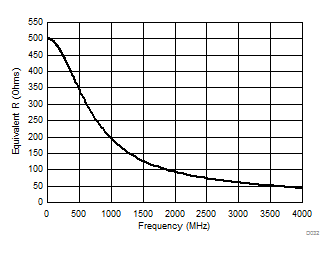

ADS54J54 D032_SBAS659.gifFigure 104. Equivalent R

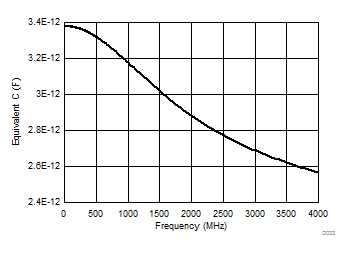

ADS54J54 D033_SBAS659.gifFigure 105. Equivalent C
