8.1.1 Multiplexer Input Connection

The ADS816x enables using a common amplifier to drive the ADC inputs as shown in Figure 8-1. This configuration improves offset error mismatch between the analog inputs as the offset error of the amplifier is common to all the analog input channels.

ADS8166 ADS8167 ADS8168 Small-Size and Low-Power 8-Channel DAQ System Using the ADS816xFigure 8-1 Small-Size and Low-Power 8-Channel DAQ System Using the ADS816x

When connecting the sensor directly to the input of the ADS816x, the maximum switching speed of the multiplexer is limited by multiplexer on-resistance and parasitic capacitance. Figure 8-2 illustrates the source resistance (RS0, RS1, and so forth), multiplexer impedance (RMUX), multiplexer capacitance (CMUX), op amp input capacitance (COPA), and the stray PCB capacitance at the output of the multiplexer (CSTRAY). In this example, the total output capacitance is the combination of the multiplexer output capacitance, the op amp input capacitance, and the stray capacitance (CMUX + COPA + CSTRAY) = 15pF. When switching to a channel, make sure this capacitance is charged to the sensor output voltage with the source resistance and the multiplexer resistance (RS0 + RMUX).

Equation 2 estimates the number of time constants required for N bits of settling. For this example, to achieve 16-bit settling, 11.09 time constants are required. Thus, as computed in Equation 3 and Equation 4, for channel 0 the required settling time is 167ns.

Equation 2. NTC = ln (216) = 11.09
Equation 3. Settling Time Required = (RS0 + RMUX) × (CMUX + COPA + CSTRAY) × NTC
Equation 4. Settling Time Required = (1kΩ) × (15pF) × 11.09 = 167ns
ADS8166 ADS8167 ADS8168 Direct Sensor Interface With the ADS816x in an 8-Channel, Single-Ended ConfigurationFigure 8-2 Direct Sensor Interface With the ADS816x in an 8-Channel, Single-Ended Configuration

When operating at 1MSPS in either manual mode, auto sequence mode, or custom channel sequencing mode, a 900ns settling time is available at the analog inputs of the multiplexer. Using Equation 4, the maximum sensor output impedance for a direct connection is 5.4kΩ.

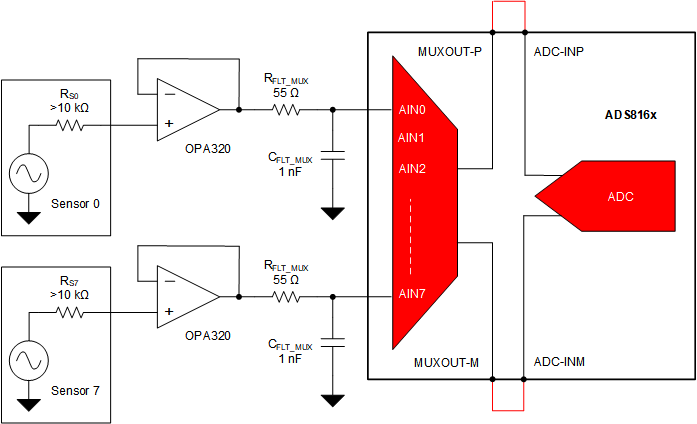

Figure 8-3 shows that the multiplexer inputs are driven using an amplifier. The multiplexer outputs are connected to the ADC inputs directly. For best distortion performance, place an amplifier between the multiplexer and the ADC as shown in Figure 8-2.

ADS8166 ADS8167 ADS8168 High Output Impedance Sensor InterfaceFigure 8-3 High Output Impedance Sensor Interface
