Typical Characteristics

at TA = 25°C, AVDD = 5 V, DVDD = 3.3 V, VREF = 2.5 V (internal), and fDATA = 600 kSPS (unless otherwise noted)

fIN = 2 kHz, SNR = 84.6 dB, THD = –107.6 dB
Figure 6-2 Typical FFT
fIN = 2 kHz
Figure 6-4 SINAD vs Temperature
fIN = 2 kHz
Figure 6-6 SINAD vs Reference Voltage
fIN = 2 kHz
Figure 6-8 THD vs Reference Voltage

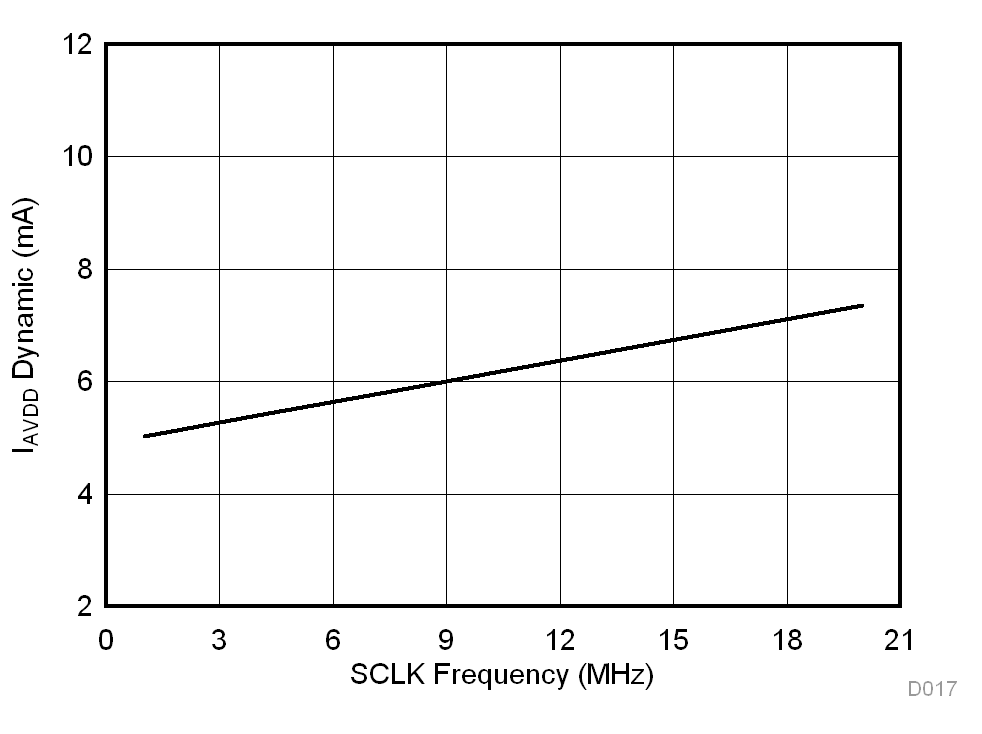

Figure 6-10 Analog Supply Current vs SCLK Frequency

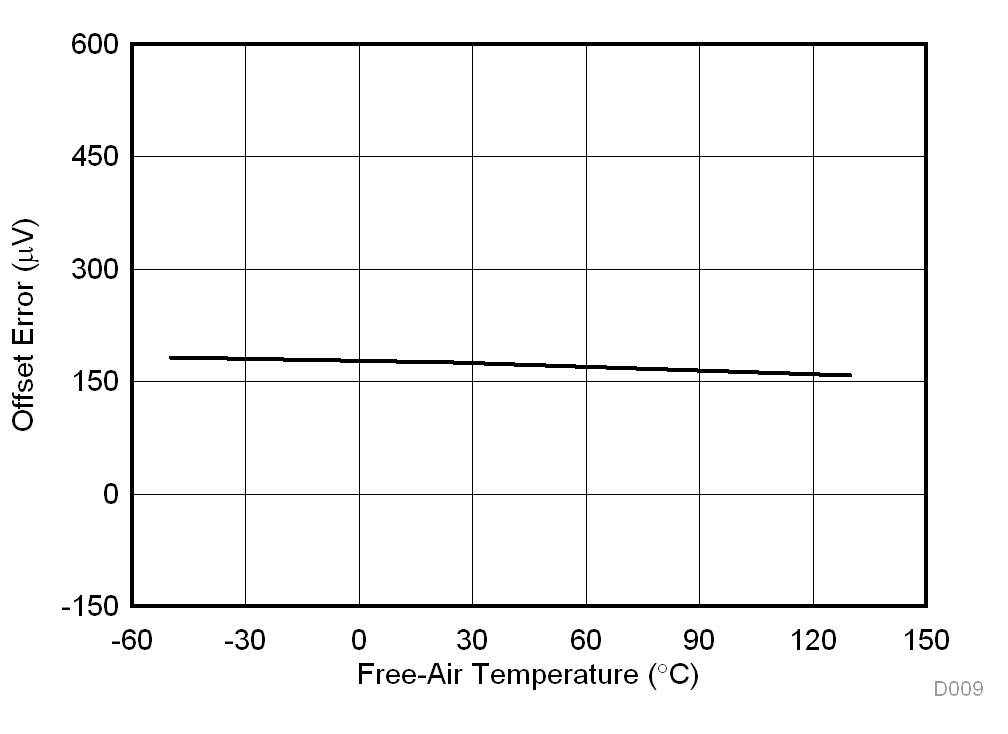

Figure 6-12 Offset Error vs Temperature

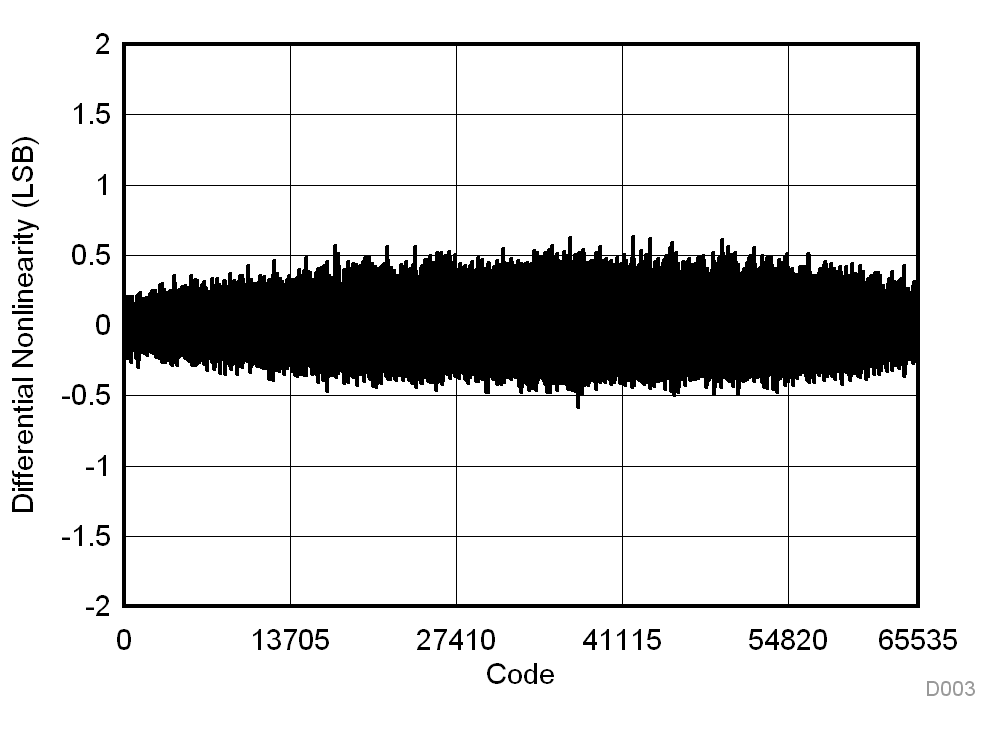

Figure 6-14 Typical DNL

Figure 6-16 DNL vs Temperature

Figure 6-18 DNL vs Reference Voltage
fIN = 2 kHz

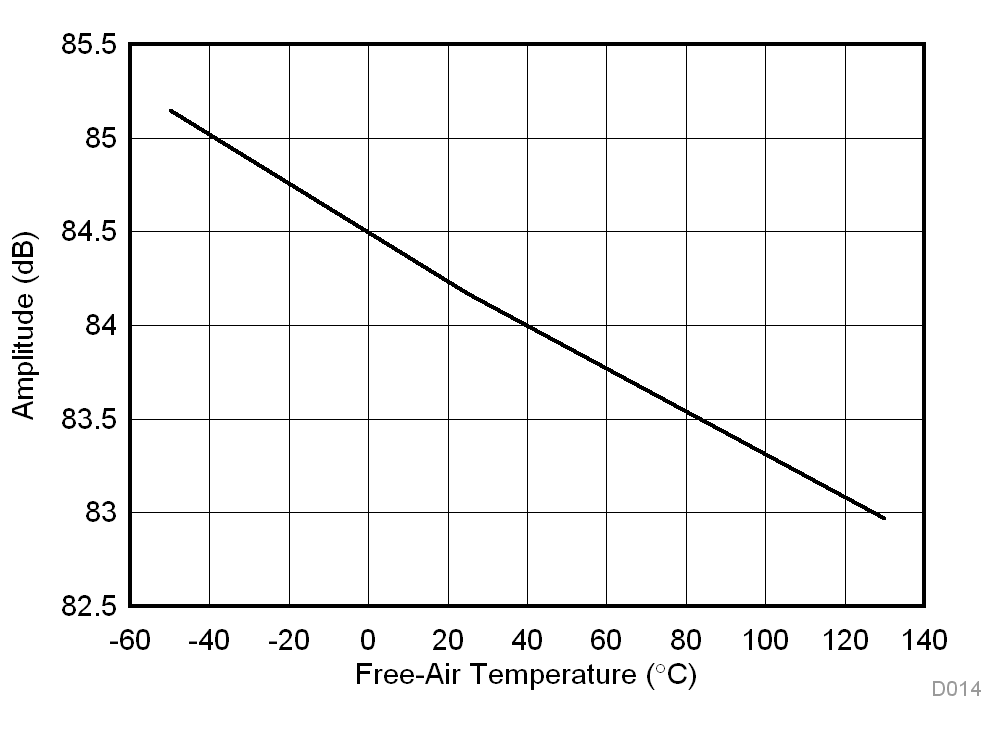

Figure 6-3 SNR vs Temperature
fIN = 2 kHz
Figure 6-5 SNR vs Reference Voltage
fIN = 2 kHz

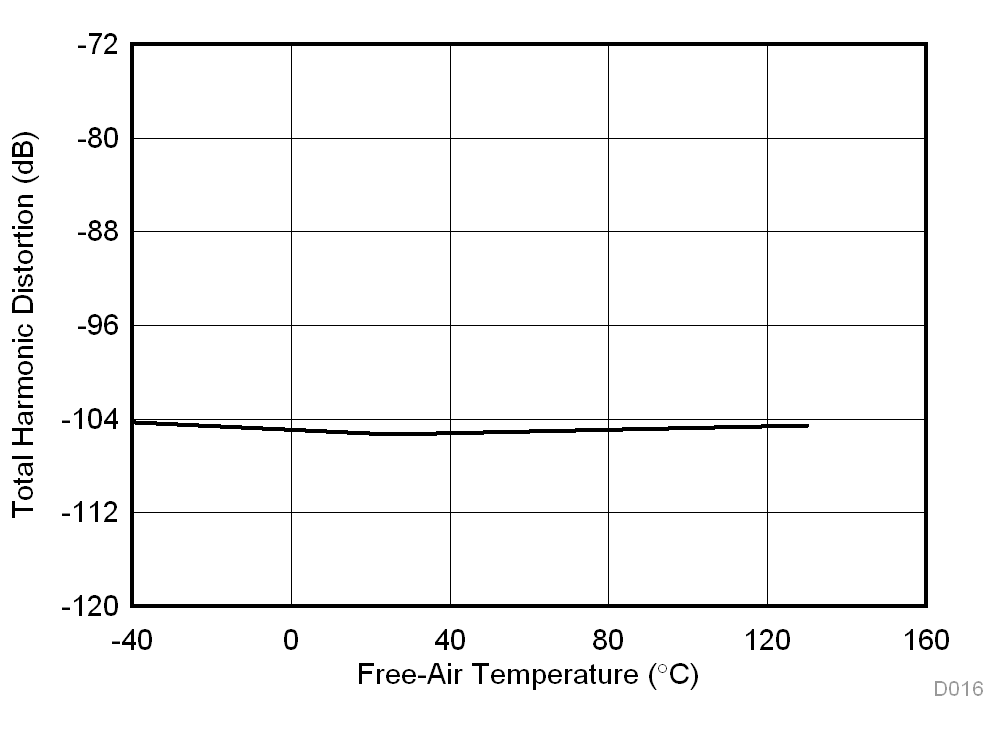

Figure 6-7 THD vs Temperature

Figure 6-9 Analog Supply Current vs Temperature
65536 data points, VIN-DIFF = 0 V
Figure 6-11 DC Histogram

Figure 6-13 Gain Error vs Temperature

Figure 6-15 Typical INL

Figure 6-17 INL vs Temperature

Figure 6-19 INL vs Reference Voltage
