7.5.4.2.1 Legacy, SPI-Compatible (SYS-xy-S) Protocols with a Single SDO-x

As shown in Table 7-9, the host controller can use any of the four legacy, SPI-compatible protocols (SPI-00-S, SPI-01-S, SPI-10-S, or SPI-11-S) to read data from the device.

Table 7-9 SPI Protocols for Reading From the Device
PROTOCOL SCLK POLARITY
(At CS Falling Edge)		 SCLK PHASE
(Capture Edge)		 MSB BIT LAUNCH EDGE SDI_CTL_REG SDO_CTL_REG DIAGRAM
SPI-00-S Low Rising CS falling 00h 00h Figure 7-32
SPI-01-S Low Falling 1st SCLK rising 01h 00h Figure 7-32
SPI-10-S High Falling CS falling 02h 00h Figure 7-33
SPI-11-S High Rising 1st SCLK falling 03h 00h Figure 7-33

On power-up or after coming out of any asynchronous reset, the device supports the SPI-00-S protocol for data read and data write operations. To select a different SPI-compatible protocol for both the data transfer operations:

  1. Program the SDI_MODE[1:0] bits in the SDI_CTL_REG register. This first write operation must adhere to the SPI-00-S protocol. Any subsequent data transfer frames must adhere to the newly-selected protocol.
  2. Set the SDO_MODE[1:0] bits = 00b in the SDO_CTL_REG register.

Note:

The SPI transfer protocol selected by configuring the SDI_MODE[1:0] bits in the SDI_CTL_REG register determines the data transfer protocol for both write and read operations. Either data can be read from the device using the selected SPI protocol by configuring the SDO_MODE[1:0] bits = 00b in the SDO_CTL_REG register, or one of the SRC protocols can be selected for data read, as explained in the Section 7.5.4.2.3 section.

When using any of the SPI-compatible protocols, the RVS output remains low throughout the data transfer frame; see the Section 6.8 table for associated timing parameters.

Figure 7-32 and Figure 7-33 explain the details of the four protocols. As explained in the Section 7.5.1 section, the host controller can use a short data transfer frame to read only the required number of MSB bits from the 32-bit output data word.

If the host controller uses a long data transfer frame with SDO_CNTL_REG[7:0] = 00h, then the device exhibits daisy-chain operation (see the Section 7.4.1.3 section).

GUID-9BB82B70-BAA3-4B53-94EB-8E97879C00C5-low.gifFigure 7-32 Standard SPI Timing Protocol
(CPHA = 0, Single SDO-x)

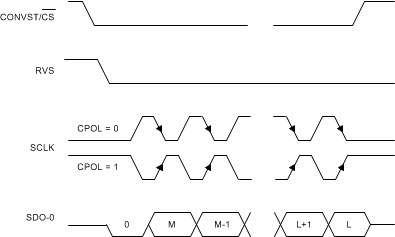

GUID-01B0067C-2096-4D48-9ACB-544FBE02F5EB-low.gifFigure 7-33 Standard SPI Timing Protocol
(CPHA = 1, Single SDO-x)
