7.3.10 ADC Transfer Function

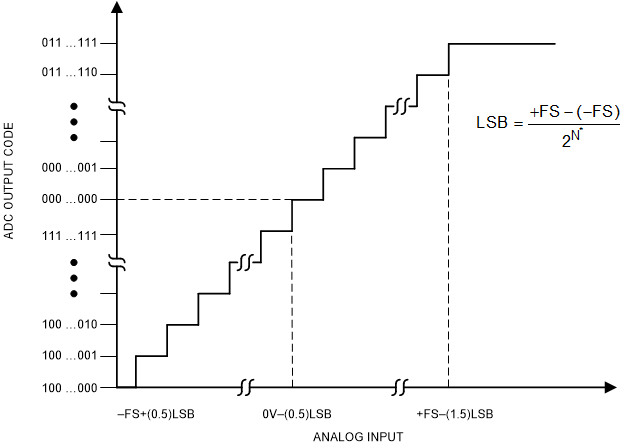

The ADS8686S outputs 16 bits of conversion data in binary twos complement format for all ranges. The designed code transitions occur midway between successive integer LSB values (that is, 1/2 LSB and 3/2 LSB). The LSB size is the full-scale range ÷ 65,536 for the ADS8686S. Figure 7-10 and Table 7-4 show the ideal transfer characteristics for the ADS8686S. The LSB size is dependent on the analog input range selected.

GUID-91EC41C2-B0DD-4A1C-BC68-D35B2D1E57FF-low.gif Figure 7-10 Transfer Characteristics
Table 7-4 ADC Full-Scale Range and LSB Size for Different Ranges
RANGE (V) +FS (V) MIDSCALE (V) –FS (V) LSB (µV)
±12 12 0 –12 366
±10 10 0 –10 305
±6 6 0 –6 183
±5 5 0 –5 152
±3 3 0 –3 92
±2.5 2.5 0 –2.5 76
