SBAS813 June 2018 ADS8688AT
PRODUCTION DATA.

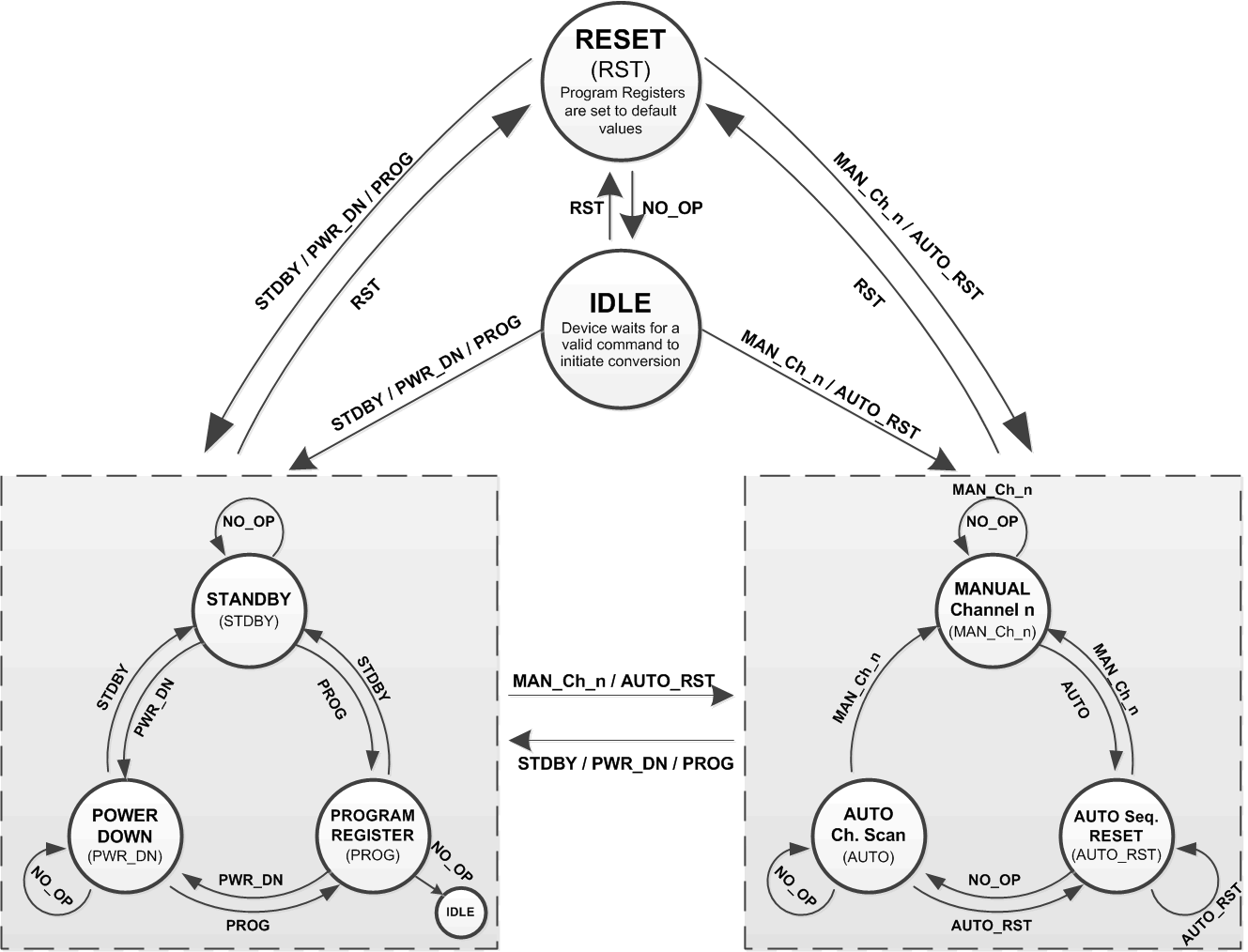

The ADS8688AT supports multiple modes of operation that are software programmable. After powering up, the device is placed into idle mode and does not perform any function until a command is received from the user. Table 7 lists all commands to enter the different modes of the device. After power-up, the program registers wake up with the default values and require appropriate configuration settings before performing any conversion. The diagram in Figure 91 explains how to switch the device from one mode of operation to another.
