10.2 Typical Application

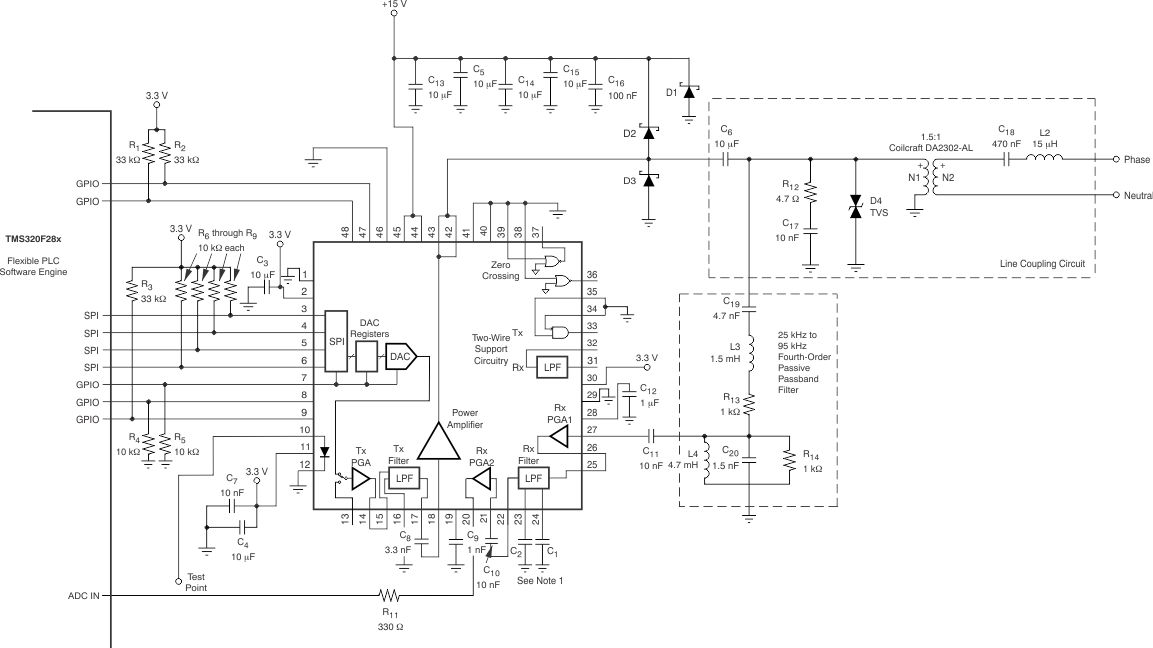

Figure 48 shows the AFE030 configured in a typical PLC analog front-end application. The schematic shows the connections to the microprocessor and ac line. The values of the passive components in Figure 48 are suitable for a single-phase powerline communications application in the CENELEC A band, connected to a 120-VAC or 240-VAC, 50-Hz or 60-Hz ac line.

AFE030 ai_basic_schm_bos588.gif
1.

NOINDENT:

Recommended values for C1 and C2:
  1. C1:
    • CENELEC A: 680 pF
    • CENELEC B, C, D: 270 pF
  2. C2:
    • CENELEC A: 680 pF
    • CENELEC B, C, D: 560 pF
Figure 48. Typical Powerline Communications Modem Application
