8.1.2.2 Self-Test Fail Event

If there is a prior self-test failure event, the ALARM will continue to blink at 0.5 Hz (for 60-Hz systems) when the SW_OPEN signal goes from high to low. Figure 14 describes the sequence of events.

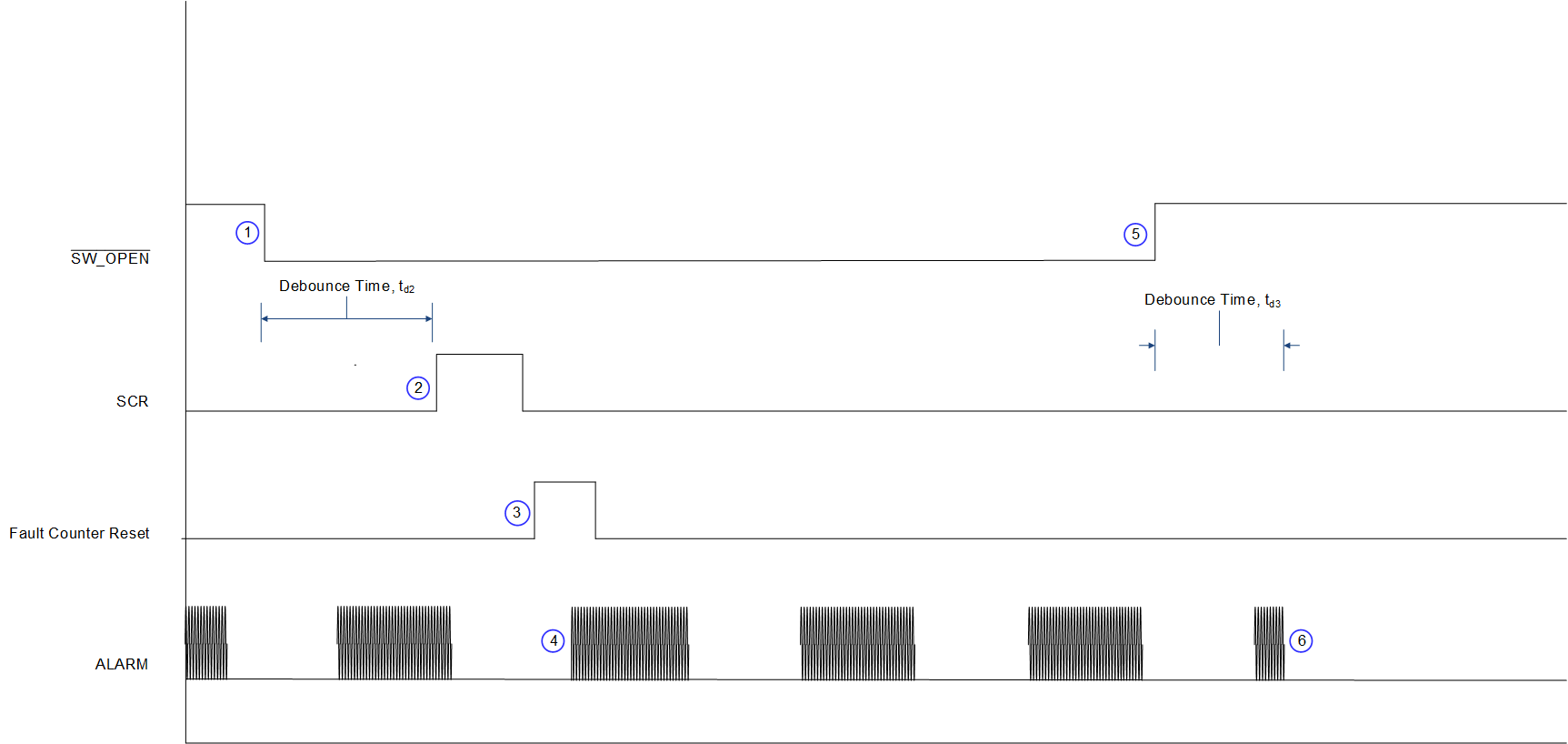

AFE3010 AFE3010_sw_open_self_fail.gifFigure 14. ALARM With SW_OPEN Transition to Low and Prior Self-Test Failure
  1. SW_OPEN signal transitions from high to low.
  2. After a debounce time to ensure there is no false transition, the device fires the SCR.
  3. The internal fault counter resets.
  4. The ALARM continues to blink at 0.5 Hz (for 60-Hz systems) because the self-test fail overrides SW_OPEN function.
  5. The SW_OPEN signal transitions low to high.
  6. After a debounce time to ensure there is no false transition, the ALARM turns off.
