6.10.5.1.3 CPSW3G RGMII Timing

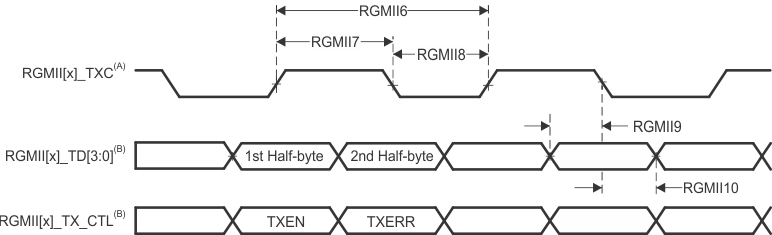

Table 6-28, Table 6-29, Table 6-30, Figure 6-24, Table 6-31, Table 6-32, and Figure 6-25 present timing conditions, requirements, and switching characteristics for CPSW3G RGMII.

Table 6-28 CPSW3G RGMII Timing Conditions
PARAMETER MIN MAX UNIT
INPUT CONDITIONS
SRI Input slew rate 2.64 5 V/ns
OUTPUT CONDITIONS
CL Output load capacitance 2 20 pF
PCB CONNECTIVITY REQUIREMENTS
td(Trace Mismatch Delay) Propagation delay mismatch across all traces RGMII[x]_RXC, RGMII[x]_RD[3:0], RGMII[x]_RX_CTL 50 ps
RGMII[x]_TXC, RGMII[x]_TD[3:0], RGMII[x]_TX_CTL 50 ps

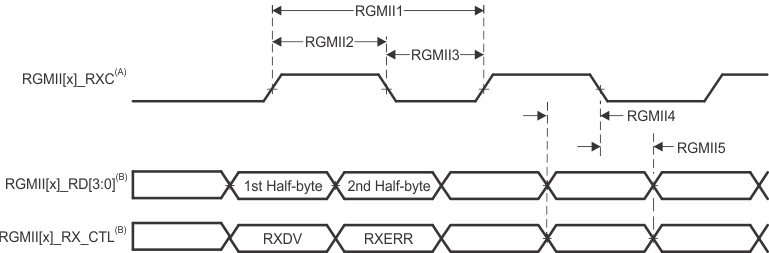

Table 6-29 RGMII[x]_RXC Timing Requirements – RGMII Mode see Figure 6-24
NO. PARAMETER DESCRIPTION MODE MIN MAX UNIT
RGMII1 tc(RXC) Cycle time, RGMII[x]_RXC 10Mbps 360 440 ns
100Mbps 36 44 ns
1000Mbps 7.2 8.8 ns
RGMII2 tw(RXCH) Pulse duration, RGMII[x]_RXC high 10Mbps 160 240 ns
100Mbps 16 24 ns
1000Mbps 3.6 4.4 ns
RGMII3 tw(RXCL) Pulse duration, RGMII[x]_RXC low 10Mbps 160 240 ns
100Mbps 16 24 ns
1000Mbps 3.6 4.4 ns
Table 6-30 RGMII[x]_RD[3:0], and RGMII[x]_RX_CTL Timing Requirements – RGMII Mode see Figure 6-24
NO. PARAMETER DESCRIPTION MODE MIN MAX UNIT
RGMII4 tsu(RD-RXC) Setup time, RGMII[x]_RD[3:0] valid before RGMII[x]_RXC high/low 10Mbps 1 ns
100Mbps 1 ns
1000Mbps 1 ns
tsu(RX_CTL-RXC) Setup time, RGMII[x]_RX_CTL valid before RGMII[x]_RXC high/low 10Mbps 1 ns
100Mbps 1 ns
1000Mbps 1 ns
RGMII5 th(RXC-RD) Hold time, RGMII[x]_RD[3:0] valid after RGMII[x]_RXC high/low 10Mbps 1 ns
100Mbps 1 ns
1000Mbps 1 ns
th(RXC-RX_CTL) Hold time, RGMII[x]_RX_CTL valid after RGMII[x]_RXC high/low 10Mbps 1 ns
100Mbps 1 ns
1000Mbps 1 ns
AM2434 AM2432 AM2431 CPSW3G RGMII[x]_RXC, RGMII[x]_RD[3:0], RGMII[x]_RX_CTL Timing Requirements - RGMII Mode
A. RGMII[x]_RXC must be externally delayed relative to the data and control pins.
B. Data and control information is received using both edges of the clocks. RGMII[x]_RD[3:0] carries data bits 3-0 on the rising edge of RGMII[x]_RXC and data bits 7-4 on the falling edge of RGMII[x]_RXC. Similarly, RGMII[x]_RX_CTL carries RXDV on rising edge of RGMII[x]_RXC and RXERR on falling edge of RGMII[x]_RXC.
Figure 6-24 CPSW3G RGMII[x]_RXC, RGMII[x]_RD[3:0], RGMII[x]_RX_CTL Timing Requirements - RGMII Mode
Table 6-31 RGMII[x]_TXC Switching Characteristics – RGMII Mode see Figure 6-25
NO. PARAMETER DESCRIPTION MODE MIN MAX UNIT
RGMII6 tc(TXC) Cycle time, RGMII[x]_TXC 10Mbps 360 440 ns
100Mbps 36 44 ns
1000Mbps 7.2 8.8 ns
RGMII7 tw(TXCH) Pulse duration, RGMII[x]_TXC high 10Mbps 160 240 ns
100Mbps 16 24 ns
1000Mbps 3.6 4.4 ns
RGMII8 tw(TXCL) Pulse duration, RGMII[x]_TXC low 10Mbps 160 240 ns
100Mbps 16 24 ns
1000Mbps 3.6 4.4 ns
Table 6-32 RGMII[x]_TD[3:0] and RGMII[x]_TX_CTL Switching Characteristics – RGMII Mode see Figure 6-25
NO. PARAMETER DESCRIPTION MODE MIN MAX UNIT
RGMII9 tosu(TD-TXC) Output setup time, RGMII[x]_TD[3:0] valid to RGMII[x]_TXC high/low 10Mbps 1.2 ns
100Mbps 1.2 ns
1000Mbps 1.2 ns
tosu(TX_CTL-TXC) Output setup time, RGMII[x]_TX_CTL valid to RGMII[x]_TXC high/low 10Mbps 1.2 ns
100Mbps 1.2 ns
1000Mbps 1.2 ns
RGMII10 toh(TXC-TD) Output hold time, RGMII[x]_TD[3:0] valid after RGMII[x]_TXC high/low 10Mbps 1.2 ns
100Mbps 1.2 ns
1000Mbps 1.2 ns
toh(TXC-TX_CTL) Output hold time, RGMII[x]_TX_CTL valid after RGMII[x]_TXC high/low 10Mbps 1.2 ns
100Mbps 1.2 ns
1000Mbps 1.2 ns
AM2434 AM2432 AM2431 CPSW3G RGMII[x]_TXC, RGMII[x]_TD[3:0], and RGMII[x]_TX_CTL Switching Characteristics - RGMII Mode
A. TXC is delayed internally before being driven to the RGMII[x]_TXC pin. This internal delay is always enabled.
B. Data and control information is received using both edges of the clocks. RGMII[x]_TD[3:0] carries data bits 3-0 on the rising edge of RGMII[x]_TXC and data bits 7-4 on the falling edge of RGMII[x]_TXC. Similarly, RGMII[x]_TX_CTL carries TXEN on rising edge of RGMII[x]_TXC and TXERR on falling edge of RGMII[x]_TXC.
Figure 6-25 CPSW3G RGMII[x]_TXC, RGMII[x]_TD[3:0], and RGMII[x]_TX_CTL Switching Characteristics - RGMII Mode
