6.1 Absolute Maximum Ratings

over operating junction temperature range (unless otherwise noted)(1)(2)
PARAMETER MIN MAX UNIT
VDD_CORE Core supply -0.3 1.05 V
VDDR_CORE RAM supply -0.3 1.05 V
VDD_CANUART CANUART core supply -0.3 1.05 V
VDDA_CORE_CSI_DSI CSIRX0 and DSITX0 core supply -0.3 1.05 V
VDDA_CORE_DSI_CLK DSITX0 clock core supply -0.3 1.05 V
VDDA_CORE_USB USB0 and USB1 core supply -0.3 1.05 V
VDDA_DDR_PLL0 DDR Deskew PLL supply -0.3 1.05 V
VDD_MMC0 MMC0 PHY core supply -0.3 1.05 V
VDDA_0P85_DLL_MMC0 MMC0 DLL analog supply -0.3 1.05 V
VDDS_DDR DDR PHY IO supply -0.3 1.57 V
VDDS_DDR_C DDR clock IO supply -0.3 1.57 V
VDDS_MMC0 MMC0 PHY IO supply -0.3 1.98 V
VDDS_OSC0 MCU_OSC0 and WKUP_LFOSC0 supply -0.3 1.98 V
VDDA_MCU RCOSC, POR, POK, and MCU_PLL0 analog supply -0.3 1.98 V
VDDA_PLL0 MAIN_PLL0, MAIN_PLL1, and MAIN_PLL2 analog supply -0.3 1.98 V
VDDA_PLL1 MAIN_PLL16, MAIN_PLL17, and MAIN_PLL18 analog supply -0.3 1.98 V
VDDA_PLL2 MAIN_PLL6 analog supply -0.3 1.98 V
VDDA_PLL3 MAIN_PLL12 analog supply -0.3 1.98 V
VDDA_PLL4 MAIN_PLL8 and MAIN_PLL15 analog supply -0.3 1.98 V
VDDA_1P8_CSI_DSI CSIRX0 and DSITX0 1.8V analog supply -0.3 1.98 V
VDDA_1P8_OLDI0 OLDI0 1.8V analog supply -0.3 1.98 V
VDDA_1P8_USB USB0 and USB1 1.8V analog supply -0.3 1.98 V
VDDA_TEMP0 TEMP0 analog supply -0.3 1.98 V
VDDA_TEMP1 TEMP1 analog supply -0.3 1.98 V
VDDA_TEMP2 TEMP2 analog supply -0.3 1.98 V
VPP eFuse ROM programming supply -0.3 1.98 V
VDDSHV_CANUART IO supply for IO group CANUART -0.3 3.63 V
VDDSHV_MCU IO supply for IO group MCU -0.3 3.63 V
VDDSHV0 IO supply for IO group 0 -0.3 3.63 V
VDDSHV1 IO supply for IO group 1 -0.3 3.63 V
VDDSHV2 IO supply for IO group 2 -0.3 3.63 V
VDDSHV3 IO supply for IO group 3 -0.3 3.63 V
VDDSHV5 IO supply for IO group 5 -0.3 3.63 V
VDDSHV6 IO supply for IO group 6 -0.3 3.63 V
VDDA_3P3_USB USB0 and USB1 3.3V analog supply -0.3 3.63 V
Steady-state max voltage at all fail-safe IO pins MCU_PORz -0.3 3.63 V
MCU_I2C0_SCL, MCU_I2C0_SDA,  WKUP_I2C0_SCL,  WKUP_I2C0_SDA,  EXTINTn
When operating at 1.8V		 -0.3 1.98(3) V
MCU_I2C0_SCL, MCU_I2C0_SDA,  WKUP_I2C0_SCL,  WKUP_I2C0_SDA,  EXTINTn
When operating at 3.3V		 -0.3 3.63(3)
VMON_1P8_SOC -0.3 1.98 V
VMON_3P3_SOC -0.3 3.63 V
VMON_VSYS(4) -0.3 1.98 V
Steady-state max voltage at all other IO pins(5) USB0_VBUS, USB1_VBUS(6) -0.3 3.6 V
All other IO pins -0.3 IO supply voltage + 0.3 V
Transient overshoot and undershoot at IO pin 20% of IO supply voltage for up to 20% of the signal period (see Figure 6-1, IO Transient Voltage Ranges) 0.2 × VDD(7) V
Latch-up performance(8) I-Test -100 100 mA
Over-Voltage (OV) Test 1.5 x VDD(7) V
TSTG Storage temperature -55 +150 °C
(1) Operation outside the Absolute Maximum Ratings may cause permanent device damage. Absolute Maximum Ratings do not imply functional operation of the device at these or any other conditions beyond those listed under Recommended Operating Conditions. If used outside the Section 6.5, Recommended Operating Conditions but within the Absolute Maximum Ratings, the device may not be fully functional, and this may affect device reliability, functionality, performance, and shorten the device lifetime.
(2) All voltage values are with respect to VSS, unless otherwise noted.
(3) The absolute maximum ratings for these fail-safe pins depends on their IO supply operating voltage. Therefore, this value is also defined by the maximum VIH value found in the I2C Open-Drain, and Fail-Safe (I2C OD FS) Electrical Characteristics section, where the electrical characteristics table has separate parameter values for 1.8V mode and 3.3V mode.
(4) The VMON_VSYS pin provides a way to monitor the system power supply. For more information, see Section 8.2.4, System Power Supply Monitor Design Guidelines.
(5) This parameter applies to all IO pins which are not fail-safe and the requirement applies to all values of IO supply voltage. For example, if the voltage applied to a specific IO supply is 0 volts the valid input voltage range for any IO powered by that supply will be –0.3 to +0.3 volts. Special attention should be applied anytime peripheral devices are not powered from the same power sources used to power the respective IO supply. It is important the attached peripheral never sources a voltage outside the valid input voltage range, including power supply ramp-up and ramp-down sequences.
(6) An external resistor divider is required to limit the voltage applied to this device pin. For more information, see Section 8.2.3, USB Design Guidelines.
(7) VDD is the voltage on the corresponding power-supply pin(s) for the IO.
(8) For current pulse injection (I-Test):
  • Pins stressed per JEDEC JESD78 (Class II) and passed with specified I/O pin injection current and clamp voltage of 1.5 times maximum recommended I/O voltage and negative 0.5 times maximum recommended I/O voltage.
For over-voltage performance (Over-Voltage (OV) Test):
  • Supplies stressed per JEDEC JESD78 (Class II) and passed specified voltage injection.

Fail-safe IO terminals are designed such they do not have dependencies on the respective IO power supply voltage. This allows external voltage sources to be connected to these IO terminals when the respective IO power supplies are turned off. The MCU_I2C0_SCL, MCU_I2C0_SDA,  WKUP_I2C0_SCL, WKUP_I2C0_SDA,  EXTINTn, VMON_1P8_SOC, VMON_3P3_SOC, and MCU_PORz are the only fail-safe IO terminals. All other IO terminals are not fail-safe and the voltage applied to them should be limited to the value defined by the Steady State Max. Voltage at all IO pins parameter in Section 6.1.

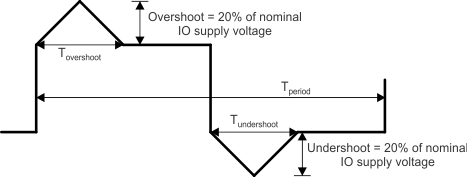

AM62P AM62P-Q1 IO Transient Voltage Ranges
A. Tovershoot + Tundershoot < 20% of Tperiod
Figure 6-1 IO Transient Voltage Ranges
