6.9.5.10 EPWM

Table 6-55, Table 6-56, Figure 6-42, Table 6-57, Figure 6-43, Figure 6-44, and Figure 6-45 present timing conditions, timing requirements, and switching characteristics for EPWM.

Table 6-55 EPWM Timing Conditions
PARAMETER MIN MAX UNIT
INPUT CONDITIONS
SRI Input slew rate 1 4 V/ns
OUTPUT CONDITIONS
CL Output load capacitance 2 7 pF
Table 6-56 EPWM Timing Requirements see Figure 6-42
NO. PARAMETER DESCRIPTION MIN MAX UNIT
PWM6 tw(SYNCIN) Pulse duration, EHRPWM_SYNCI 2P(1) + 2 ns
PWM7 tw(TZ) Pulse duration, EHRPWM_TZn_IN low 3P(1) + 2 ns
(1) P = sysclk period in ns.
AM67 AM67A EPWM Timing Requirements Figure 6-42 EPWM Timing Requirements
Table 6-57 EPWM Switching Characteristics see Figure 6-43, Figure 6-44, and Figure 6-45
NO. PARAMETER DESCRIPTION MIN MAX UNIT
PWM1 tw(PWM) Pulse duration, EHRPWM_A/B high/low P(1) - 3 ns
PWM2 tw(SYNCOUT) Pulse duration, EHRPWM_SYNCO P(1) - 3 ns
PWM3 td(TZ-PWM) Delay time, EHRPWM_TZn_IN active to EHRPWM_A/B forced high/low 11 ns
PWM4 td(TZ-PWMZ) Delay time, EHRPWM_TZn_IN active to EHRPWM_A/B Hi-Z 11 ns
PWM5 tw(SOC) Pulse duration, EHRPWM_SOCA/B output P(1) - 3 ns
(1) P = sysclk period in ns.
AM67 AM67A EHRPWM Switching Characteristics Figure 6-43 EHRPWM Switching Characteristics

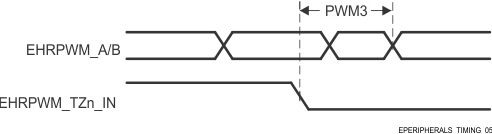

AM67 AM67A EHRPWM_TZn_IN to EHRPWM_A/B Forced Switching Characteristics Figure 6-44 EHRPWM_TZn_IN to EHRPWM_A/B Forced Switching Characteristics

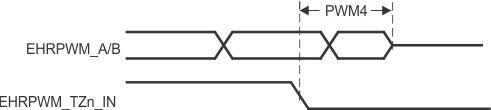

AM67 AM67A EHRPWM_TZn_IN to EHRPWM_A/B Hi-Z Switching Characteristics Figure 6-45 EHRPWM_TZn_IN to EHRPWM_A/B Hi-Z Switching Characteristics

For more information, see Enhanced Pulse Width Modulation (EPWM) Module section in Peripherals chapter in the device TRM.
