6.13 Typical Characteristics

at TA = 25°C, VDD1 = 5 V, VDD2 = 3.3 V, INP = –50 mV to 50 mV, INN = GND1, and fIN = 10 kHz (unless otherwise noted)


Figure 6-5 Common-Mode Overvoltage Detection Level vs High-Side Supply Voltage

Figure 6-7 Input Offset Voltage vs Supply Voltage

Figure 6-9 Common-Mode Rejection Ratio vs Input Frequency

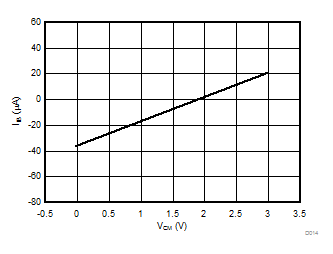

Figure 6-11 Input Bias Current vs Common-Mode Input Voltage

Figure 6-13 Input Bias Current vs Temperature

Figure 6-15 Gain Error vs Temperature

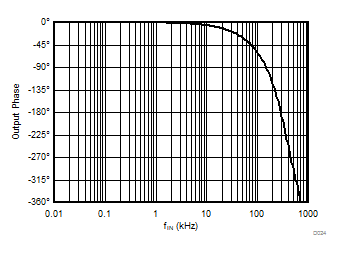

Figure 6-17 Output Phase vs Input Frequency

Figure 6-19 Nonlinearity vs Input Voltage

Figure 6-21 Nonlinearity vs Temperature

Figure 6-23 Total Harmonic Distortion vs Temperature

Figure 6-25 Signal-to-Noise Ratio vs Input Voltage

Figure 6-27 Signal-to-Noise Ratio vs Temperature

Figure 6-29 Output Common-Mode Voltage vs Low-Side Supply Voltage

Figure 6-31 Output Bandwidth vs Low-Side Supply Voltage

Figure 6-33 Supply Current vs Supply Voltage

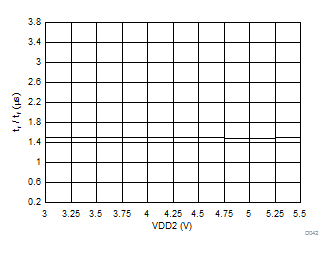

Figure 6-35 Output Rise and Fall Time vs Low-Side Supply Voltage

Figure 6-37 VIN to VOUT Signal Delay vs Low-Side Supply Voltage

Figure 6-6 Common-Mode Overvoltage Detection Level vs Temperature

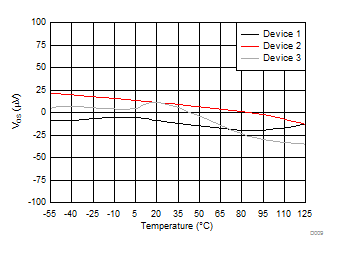

Figure 6-8 Input Offset Voltage vs Temperature

Figure 6-10 Common-Mode Rejection Ratio vs Temperature

Figure 6-12 Input Bias Current vs High-Side Supply Voltage

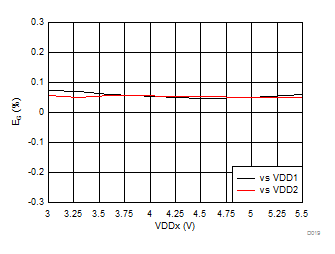

Figure 6-14 Gain Error vs Supply Voltage

Figure 6-16 Normalized Gain vs Input Frequency

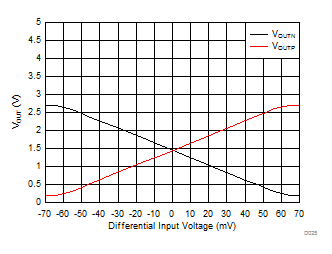

Figure 6-18 Output Voltage vs Input Voltage

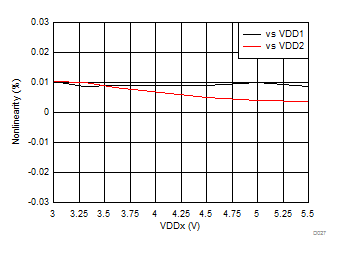

Figure 6-20 Nonlinearity vs Supply Voltage

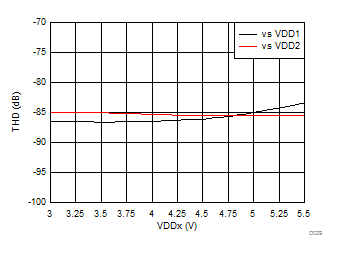

Figure 6-22 Total Harmonic Distortion vs Supply Voltage

Figure 6-24 Output Noise Density vs Frequency

Figure 6-26 Signal-to-Noise Ratio vs Supply Voltage

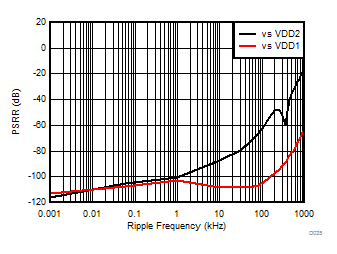

Figure 6-28 Power-Supply Rejection Ratio vs Ripple Frequency

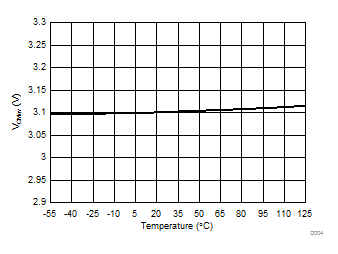

Figure 6-30 Output Common-Mode Voltage vs Temperature

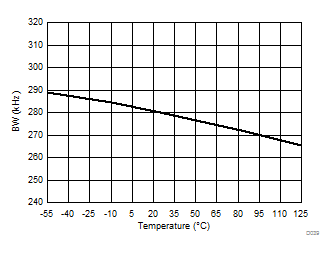

Figure 6-32 Output Bandwidth vs Temperature

Figure 6-34 Supply Current vs Temperature

Figure 6-36 Output Rise and Fall Time vs Temperature

Figure 6-38 VIN to VOUT Signal Delay vs Temperature
