8.4 Device Functional Modes

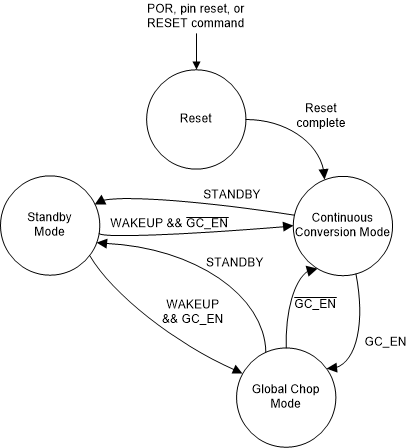

Figure 8-15 shows a state diagram depicting the major functional modes of the AMC130M02 and the transitions between them.

GUID-20200925-CA0I-0DPF-JQPT-XPZTDLJNVMF1-low.gif Figure 8-15 State Diagram Depicting Device Functional Modes
