8.3.11.2 Digital Filter Characteristic

Equation 5 calculates the z-domain transfer function of a sinc3 filter that is used for OSRs of 1024 and lower.

Equation 5. GUID-91C283D1-B9D9-4F48-85D4-1C9191D23663-low.gif

where:

  • N is the OSR

Equation 6 calculates the transfer function of a sinc3 filter in terms of the continuous-time frequency parameter f.

Equation 6. GUID-8F150434-07ED-439C-A38E-BAAEDA4D3B66-low.gif

where:

  • N is the OSR

Figure 8-7 and Figure 8-8 show the digital filter response of the fast-settling filter and the sinc3 filter for OSRs of 1024 and lower. Figure 8-9 and Figure 8-10 show the digital filter response of the sinc3 + sinc1 filter for an OSR of 4096.

GUID-F0CCCFFA-51B9-48F8-8BB4-353877E70878-low.gifFigure 8-7 Fast-Settling and Sinc3 Digital Filter Response

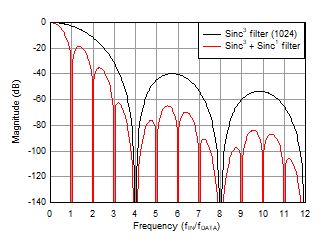

GUID-298B2DCF-48E1-44BF-8F00-585E77C2F28B-low.gifFigure 8-9 Digital Filter Response for OSR = 4096 as a Combination of Sinc3 + Sinc1

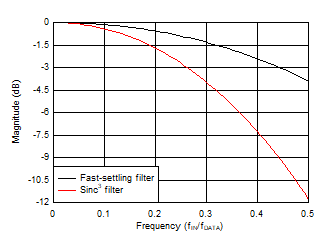

GUID-E2F72201-3B09-4C31-93BF-71C5F91BEB1F-low.gifFigure 8-8 Fast-Settling and Sinc3 Digital Filter Response, Pass-Band Detail
GUID-6DA3D599-EDB4-4894-85B0-9F125F41D4F5-low.gifFigure 8-10 Sinc3 + Sinc1 Digital Filter Response at OSR = 4096, Pass-Band Detail
