5.13 Typical Characteristics

at VDD = 3.3 V, INP = –1 V to 1 V, INN = HGND = 0V, and fIN = 10 kHz (unless otherwise noted)

AMC3330 Input Bias Current vs Common-Mode Input Voltage

Figure 5-5 Input Bias Current vs Common-Mode Input Voltage
AMC3330 Input Bias Current vs Temperature

Figure 5-7 Input Bias Current vs Temperature
AMC3330 Normalized Gain vs Input Frequency

Figure 5-9 Normalized Gain vs Input Frequency
AMC3330 Output Bandwidth vs Supply Voltage

Figure 5-11 Output Bandwidth vs Supply Voltage
AMC3330 Gain Error Histogram

Figure 5-13 Gain Error Histogram
AMC3330 Gain Error vs Temperature

Figure 5-15 Gain Error vs Temperature
AMC3330 Offset Error Histogram

Figure 5-17 Offset Error Histogram
AMC3330 Offset Error vs Temperature

Figure 5-19 Offset Error vs Temperature

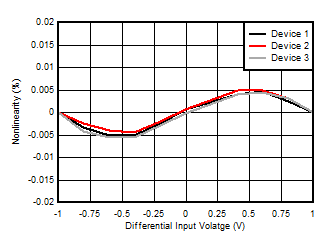

AMC3330 Nonlinearity vs Differential Input Voltage

Figure 5-21 Nonlinearity vs Differential Input Voltage
AMC3330 Nonlinearity vs Temperature

Figure 5-23 Nonlinearity vs Temperature
AMC3330 Signal to Noise Ratio vs Supply Voltage

Figure 5-25 Signal to Noise Ratio vs Supply Voltage
AMC3330 Total Harmonic Distortion vs Supply Voltage

Figure 5-27 Total Harmonic Distortion vs Supply Voltage
AMC3330 Input-Referred Noise Density vs Frequency

Figure 5-29 Input-Referred Noise Density vs Frequency
AMC3330 Common-Mode Rejection Ratio vs Temperature

Figure 5-31 Common-Mode Rejection Ratio vs Temperature
AMC3330 Power-Supply Rejection Ratio vs Temperature

Figure 5-33 Power-Supply Rejection Ratio vs Temperature
AMC3330 Input-Supply Current vs Temperature

Figure 5-35 Input-Supply Current vs Temperature

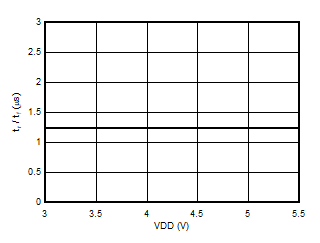

AMC3330 Output Rise And Fall Time vs Supply Voltage

Figure 5-37 Output Rise And Fall Time vs Supply Voltage
AMC3330 VIN to VOUT Signal Delay Time vs Supply Voltage

Figure 5-39 VIN to VOUT Signal Delay Time vs Supply Voltage

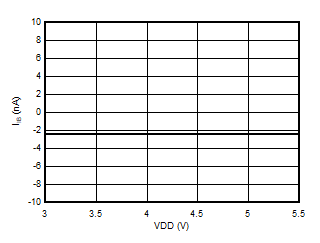

AMC3330 Input Bias Current vs Supply Voltage

Figure 5-6 Input Bias Current vs Supply Voltage
AMC3330 Output vs Differential Input Voltage

Figure 5-8 Output vs Differential Input Voltage
AMC3330 Output Phase vs Input Frequency

Figure 5-10 Output Phase vs Input Frequency
AMC3330 Output Bandwidth vs Temperature

Figure 5-12 Output Bandwidth vs Temperature
AMC3330 Gain Error vs Supply Voltage

Figure 5-14 Gain Error vs Supply Voltage
AMC3330 Gain Error Drift Histogram

Figure 5-16 Gain Error Drift Histogram
AMC3330 Offset Error vs Supply Voltage

Figure 5-18 Offset Error vs Supply Voltage
AMC3330 Offset Error Drift Histogram

Figure 5-20 Offset Error Drift Histogram
AMC3330 Nonlinearity vs Supply Voltage

Figure 5-22 Nonlinearity vs Supply Voltage
AMC3330 Signal to Noise Ratio vs Differential Input Voltage

Figure 5-24 Signal to Noise Ratio vs Differential Input Voltage
AMC3330 Signal to Noise Ratio vs Temperature

Figure 5-26 Signal to Noise Ratio vs Temperature
AMC3330 Total Harmonic Distortion vs Temperature

Figure 5-28 Total Harmonic Distortion vs Temperature
AMC3330 Common-Mode Rejection Ratio vs Input Frequency

Figure 5-30 Common-Mode Rejection Ratio vs Input Frequency

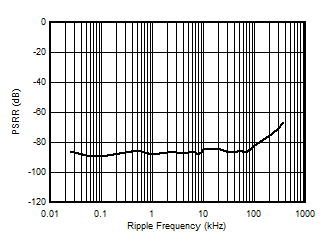

AMC3330 Power-Supply Rejection Ratio vs Ripple Frequency

Figure 5-32 Power-Supply Rejection Ratio vs Ripple Frequency
AMC3330 Input-Supply Current vs Supply Voltage

Figure 5-34 Input-Supply Current vs Supply Voltage
AMC3330 High-Side LDO Line Regulation

Figure 5-36 High-Side LDO Line Regulation
AMC3330 Output Rise And Fall Time vs Temperature

Figure 5-38 Output Rise And Fall Time vs Temperature
AMC3330 VIN to VOUT Signal Delay Time vs Temperature

Figure 5-40 VIN to VOUT Signal Delay Time vs Temperature
