7.10.4 LVDS Interface Configuration

The supported AWR1843 LVDS lane configuration is two Data lanes (LVDS_TXP/M), one Bit Clock lane (LVDS_CLKP/M) and one Frame clock lane (LVDS_FRCLKP/M). The LVDS interface is used for debugging. The LVDS interface supports the following data rates:

  • 900 Mbps (450 MHz DDR Clock)
  • 600 Mbps (300 MHz DDR Clock)
  • 450 Mbps (225 MHz DDR Clock)
  • 400 Mbps (200 MHz DDR Clock)
  • 300 Mbps (150 MHz DDR Clock)
  • 225 Mbps (112.5 MHz DDR Clock)
  • 150 Mbps (75 MHz DDR Clock)

Note that the bit clock is in DDR format and hence the numbers of toggles in the clock is equivalent to data.

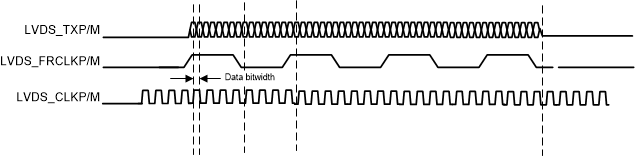

AWR1843 LVDS Interface Lane Configuration And Relative TimingsFigure 7-11 LVDS Interface Lane Configuration And Relative Timings
