7.10.11.2 ETM TRACE Switching Characteristics

NO.PARAMETERMINTYPMAXUNIT
1tcyc(ETM)Cycle time, TRACECLK period20ns
2th(ETM)Pulse Duration, TRACECLK High9ns
3tl(ETM)Pulse Duration, TRACECLK Low9ns
4tr(ETM)Clock and data rise time3.3ns
5tf(ETM)Clock and data fall time3.3ns
6td(ETMTRACECLKH-ETMDATAV)Delay time, ETM trace clock high to ETM data valid17ns
7td(ETMTRACECLKl-ETMDATAV)Delay time, ETM trace clock low to ETM data valid17ns

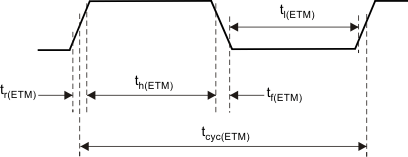

AWR1843 ETMTRACECLKOUT TimingFigure 7-16 ETMTRACECLKOUT Timing
AWR1843 ETMDATA TimingFigure 7-17 ETMDATA Timing
