7.10.10.3 QSPI Switching Characteristics

NO.PARAMETERMINTYPMAXUNIT
Q1tc(SCLK)Cycle time, sclk25ns
Q2tw(SCLKL)Pulse duration, sclk low0.5*P – 3(1)ns
Q3tw(SCLKH)Pulse duration, sclk high0.5*P – 3ns
Q4td(CS-SCLK)Delay time, sclk falling edge to cs active edge–M*P – 1(2)–M*P + 2.5(2)ns
Q5td(SCLK-CS)Delay time, sclk falling edge to cs inactive edgeN*P – 1(2)N*P + 2.5(2)ns
Q6td(SCLK-D1)Delay time, sclk falling edge to d[0] transition–3.57ns
Q7tena(CS-D1LZ)Enable time, cs active edge to d[0] driven (lo-z)–P – 4(2)–P +1(2)ns
Q8tdis(CS-D1Z)Disable time, cs active edge to d[0] tri-stated (hi-z)–P – 4(2)–P +1(2)ns
Q9 td(SCLK-D1) Delay time, sclk first falling edge to first d[1] transition (for PHA = 0 only) –3.5 – P(2) 7 – P(2) ns
(1) P = SCLK period in ns.
(2) M = QSPI_SPI_DC_REG.DDx + 1, N = 2

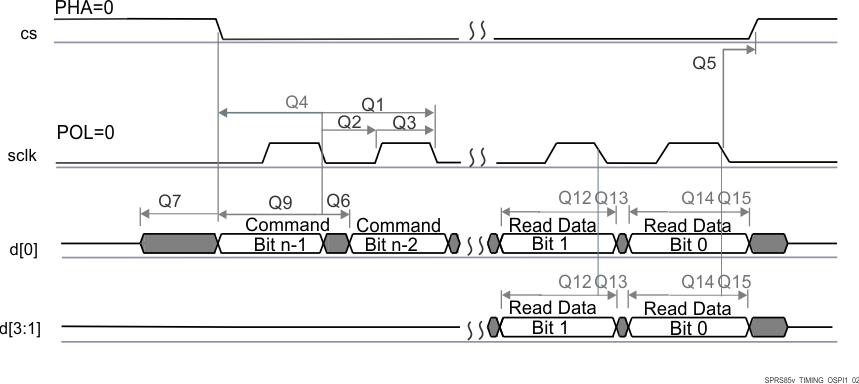

AWR1843 QSPI Read (Clock Mode 0)Figure 7-14 QSPI Read (Clock Mode 0)
AWR1843 QSPI Write (Clock Mode 0)Figure 7-15 QSPI Write (Clock Mode 0)
