6.10.2 Antenna Positions

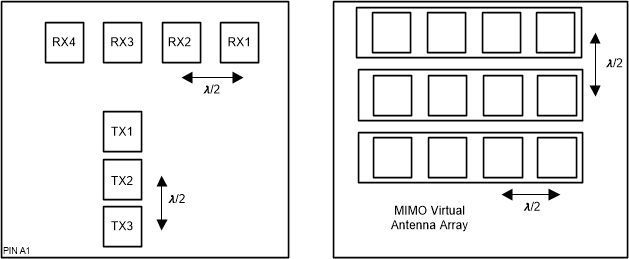

Figure 6-5 shows the placement and relative spacing of the antennas. Lambda corresponds to a frequency of 78.5 GHz.

GUID-20201120-CA0I-WK1W-PP4Z-86VZSLX5STW3-low.gif Figure 6-5 Antenna Positions (Placement and Relative Spacing)
