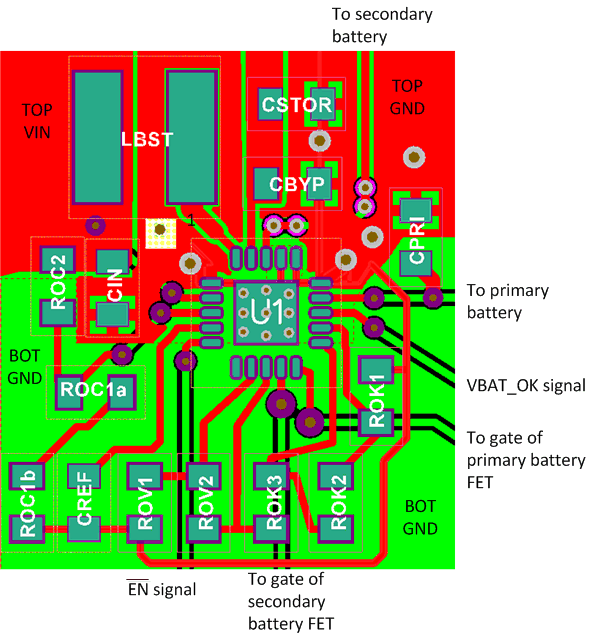

10.2 Layout Example

The VSS pins on each side of the IC are tied together using vias from top ground pours (red) down to the bottom ground plane (green).

bq25505 layout_example_slusbj3.gifFigure 40. Layout Example
