8.2.1.3 Application Curves

bq25570 app1_startup_1VIN_8p5ma_100kohm_slusbj3.png
Sourcemeter with VSOURCE = 1.0 V and compliance of 8.5 mA subsequently applied to VIN_DC
VBAT = 0.1 F capacitor charged to 2.0 V
Resistance on VSTOR = 100 kΩ
Figure 25. Startup by Battery Attach With Almost Depleted Storage Element
bq25570 app1_mppt_ov_4p2v_3vstor_2p0vin_42p6ma_slusbj3.png
VIN_DC = sourcemeter with VSOURCE = 2.0 V and compliance
of 43 mA
VBAT = sourcemeter with VSOURCE = 3.0 V and compliance
of 1 A
Figure 27. MPPT Operation
bq25570 bq25570_bq25505-vbat-ok1_lusbh2.gif
VIN_DC = 1.5 V with 75 Ω series resistance
No storage element on VBAT or VBAT_PRI
VSTOR artifically ramped from 0 V to 4.2 V to 0 V using a power amp driven by a function generator
Figure 29. VBAT_OK Operation
bq25570 bq25505-ds21_50MA-LD_TRN.png
VIN_DC = 1.5 V with 75 Ω series resistance
VBAT = 4.2 V charged 0.5 F capacitor
R(VSTOR) = open to 84 Ω to open
Figure 31. 50 mA Load Transient on VSTOR - Zoom Out

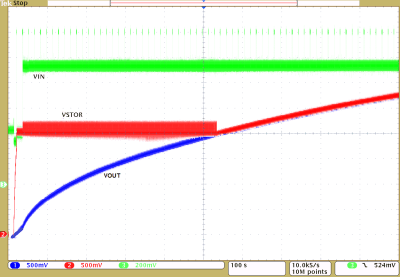

bq25570 supercap_VOUT_lusbh2.gif
VIN_DC = source meter with 1.2 V compliance and ISC = 1.0 mA
120 mF super capacitor on VOUT with VOUT regulation voltage changed to 4.2 V.
Figure 33. Charging a Super Capacitor on VOUT
bq25570 app2_operation_ov_5p0v_3vstor_2p0vin_42p6ma_slusbj3.png
VIN_DC = sourcemeter with VSOURCE = 2.0 V and compliance of 43 mA
VBAT = sourcemeter with VSOURCE = 3.0 V and compliance of
1 A
IL = inductor current
Figure 26. Boost Charger Operational Waveforms
bq25570 app1_VRDIV_ov_4p2v_slusbj3.png
VIN_DC = sourcemeter with VSOURCE = 2.0 V and compliance of 43 mA
VBAT = sourcemeter with VSOURCE = 3.6 V and compliance
of 1 A
Figure 28. VRDIV Waveform
bq25570 bq25505-ds20-50MA-LD_TRN.png
VIN_DC = 1.5 V with 75 Ω series resistance
VBAT = 4.2 V charged 0.5 F capacitor
R(VSTOR) = open to 84 Ω to open
Figure 30. 50 mA Load Transient on VSTOR

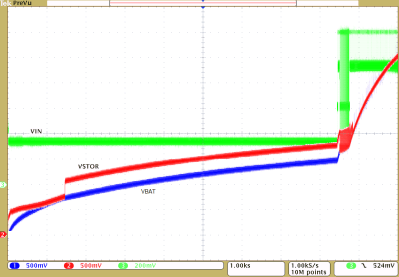

bq25570 supercap_VBAT_lusbh2.gif
VIN_DC = source meter with 1.2 V compliance and ISC = 1.0 mA
120 mF super capacitor on VBAT
Figure 32. Charging a Super Capacitor on VBAT
