8.7 Typical Characteristics

fSW = 1.5 MHzInductor DCR = 18 mΩ
VBAT = 3.8 V

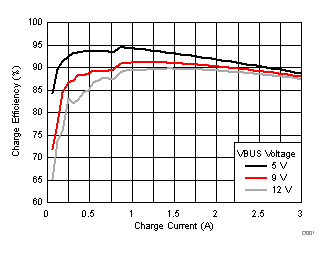

Figure 8-1 Charge Efficiency vs. Charge Current
0 A ≤ IOTG ≤1.37 AVOTG = 5.15 V
VVBAT = 3.8 V
Figure 8-3 OTG Output Voltage vs. Output Current
GUID-98FC116B-DA83-4014-A69E-B8568D4F07DF-low.gifFigure 8-5 BATREG Charge Voltage vs. Junction Temperature
VVBUS = 5 VVBAT = 3.8 V
Figure 8-7 Charge Current vs. Junction Temperature
VVBUS = 5 VVBAT = 3.8 V

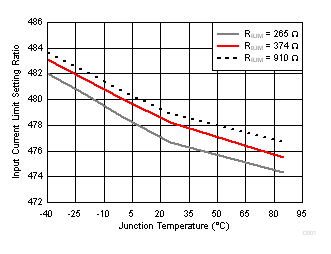

Figure 8-9 Input Current Limit Setting Ratio vs. Junction Temperature
VOTG = 5.15 Vinductor DCR = 18 mΩ

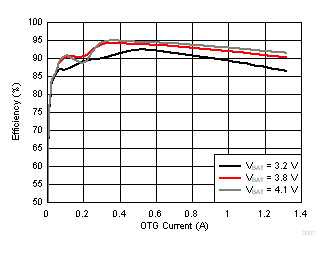

Figure 8-2 Efficiency vs. OTG Current
GUID-97439394-BF14-41D8-9BB4-132469EE7847-low.gifFigure 8-4 SYSMIN Voltage vs. Junction Temperature
VVBUS = 5 V
Figure 8-6 Input Current Limit vs. Junction Temperature
VVBUS = 5VVBAT = 3.8V
Figure 8-8 Charge Current vs. Junction Temperature Under Thermal Regulation
VVBUS = 5 VVBAT = 3.8 V
Figure 8-10 Charge Current Setting Ratio vs. Junction Temperature
