10.2 Typical Application

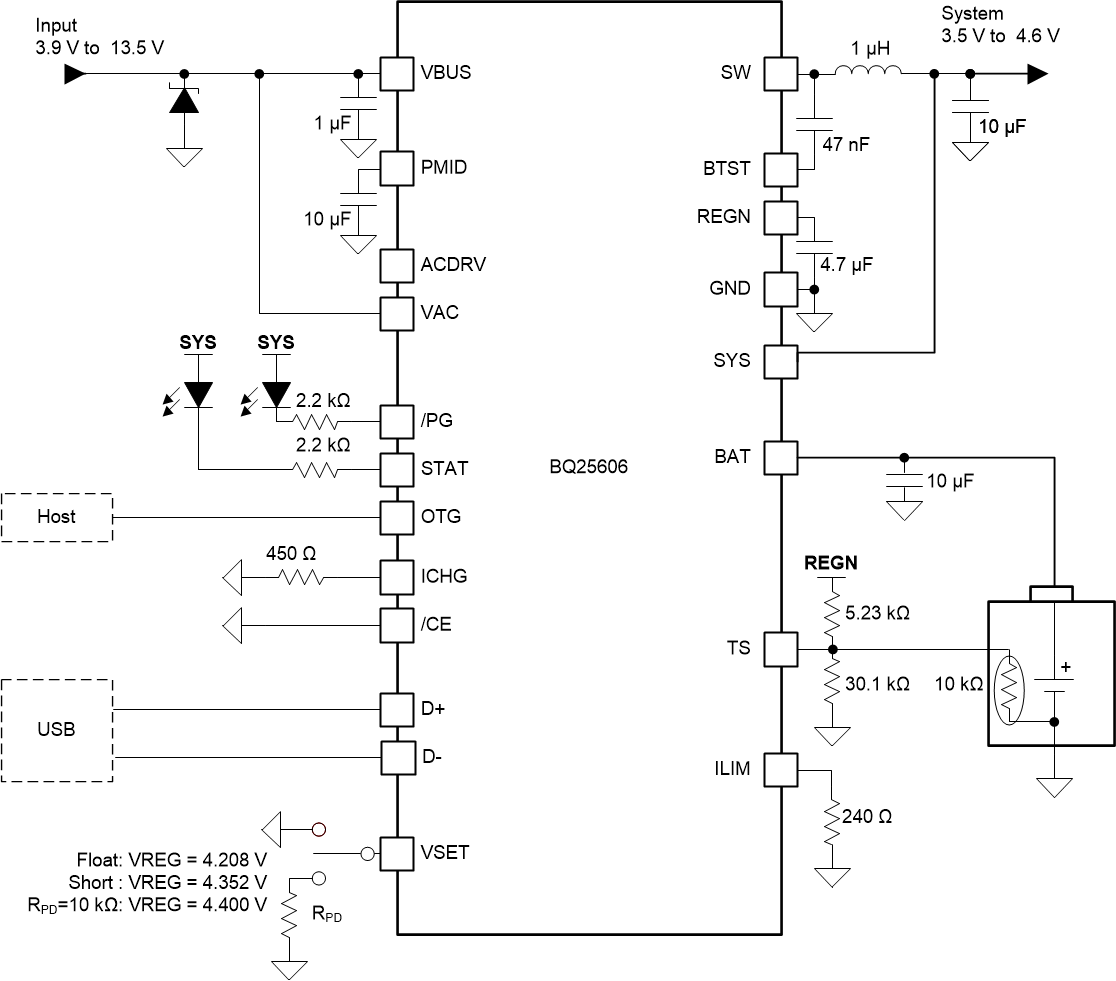

GUID-DE57A388-5B8C-46F5-9007-3D35B33E2B60-low.gif Figure 10-1 BQ25606 Application Diagram
