8.7 Typical Characteristics

fSW = 1.5 MHz Inductor DCR = 18 mΩ
VBAT = 3.8 V

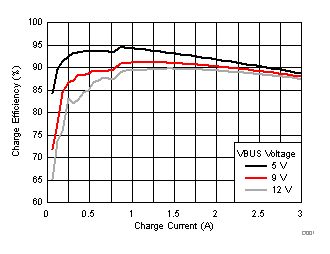

Figure 8-1 Charge Efficiency vs. Charge Current
GUID-61A1CB7E-96FE-4398-8F63-9FC2C60E9527-low.gifFigure 8-3 BATREG Charge Voltage vs. Junction Temperature
VVBUS = 5 V VBAT = 3.8 V

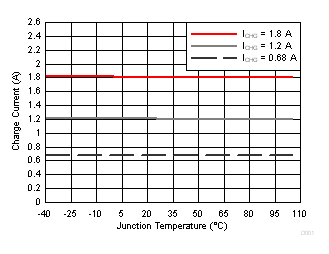

Figure 8-5 Charge Current vs. Junction Temperature
VVBUS = 5 V VBAT = 3.8 V

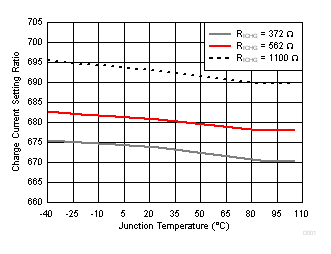

Figure 8-7 Charge Current Setting Ratio vs. Junction Temperature
VOTG = 5.0 V inductor DCR = 18 mΩ
VBAT = 3.8 V

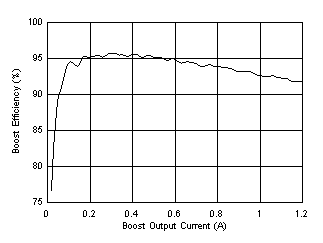

Figure 8-2 Efficiency vs. OTG Current
VVBUS = 5 V

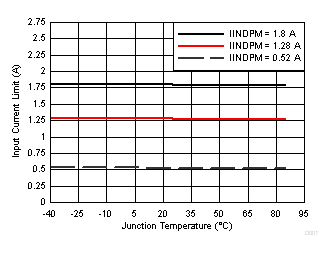

Figure 8-4 Input Current Limit vs. Junction Temperature
VVBUS = 5 V VBAT = 3.8 V

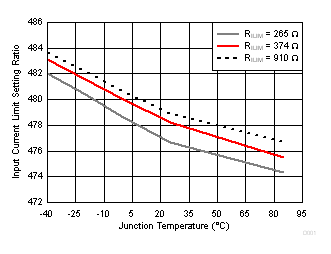

Figure 8-6 Input Current Limit Setting Ratio vs. Junction Temperature
