3 Description

The BQ25882 is a highly-integrated 2-A switch-mode battery charge management and system power path management device for dual-cell Li-Ion and Li-polymer batteries. The I2C Serial interface with charging and system settings makes the device a truly flexible solution.

Device Information(1)

PART NUMBER PACKAGE BODY SIZE (NOM)
BQ25882 DSBGA (25) 2.10 x 2.10 mm2
  1. For all available packages, see the orderable addendum at the end of the data sheet.

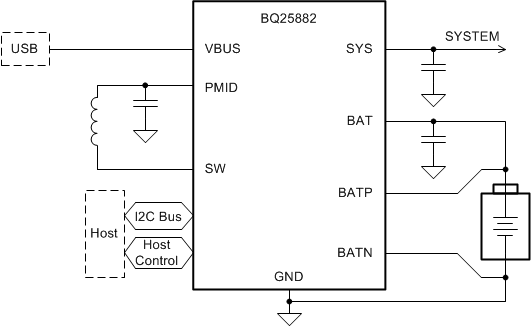

Simplified Schematic

BQ25882 simple_sch.gif
