9.2.16.6 Single Read and Write

GUID-20220923-SS0I-93JF-GQ3H-DQB7SXTQZFBV-low.gif Figure 9-13 Single Write

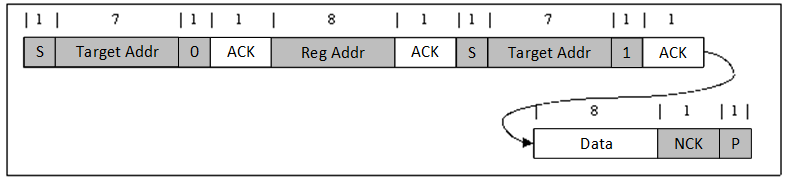

GUID-20220923-SS0I-5VLV-K62B-SP9LKKVP6LHM-low.gif Figure 9-14 Single Read

If the register address is not defined, the charger IC send back NACK and go back to the idle state.
