7.7 Typical Characteristics

VBAT = 3.8 VDCR = 10 mΩ
Figure 7-1 Charge Efficiency vs Charge Current
Figure 7-3 Boost Mode Efficiency vs PMID Load Current
VBAT = 2.9 VVBUS = 5 VSYSMIN = 3.5 V
Figure 7-5 SYS Voltage Regulation vs System Load Current

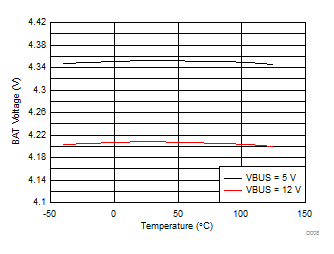

Figure 7-7 BAT Voltage vs Temperature

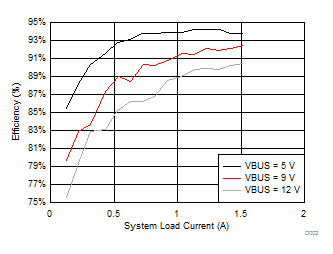

Figure 7-2 System Light Load Efficiency vs System Light Load Current
VBUS = 9 V

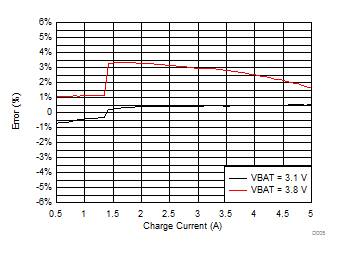

Figure 7-4 Charge Current Accuracy vs Charge Current I2C Setting
VBAT = 4.2 V
Figure 7-6 SYS Voltage Regulation vs System Load Current
Figure 7-8 Input Current Limit vs Temperature
