8.2.16.7 Multi-Read and Multi-Write

The charger device supports multi-read and multi-write on REG00 through REG14 except REG0C.

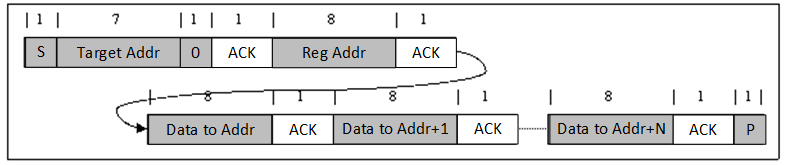

GUID-20220923-SS0I-9KZD-HDRS-4TGPJTSKHJ5G-low.gif Figure 8-15 Multi-Write

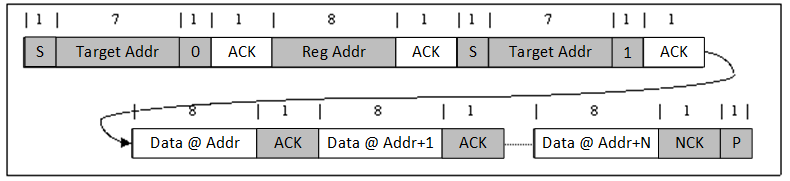

GUID-20220923-SS0I-PFVZ-TTWG-J5LPTZG4RHBH-low.gif Figure 8-16 Multi-Read

REG0C is a fault register. It keeps all the fault information from last read until the host issues a new read. For example, if Charge Safety Timer Expiration fault occurs but recovers later, the fault register REG0C reports the fault when it is read the first time, but returns to normal when it is read the second time. In order to get the fault information at present, the host has to read REG0C for the second time. The only exception is NTC_FAULT which always reports the actual condition on the TS pin. In addition, REG0C does not support multi-read and multi-write.
