3 Description

The BQ25895 is a highly-integrated 5-A switch-mode battery charge management and system power path management device for single cell Li-Ion and Li-polymer battery. The devices support high input voltage fast charging. The low impedance power path optimizes switch-mode operation efficiency, reduces battery charging time and extends battery life during discharging phase.

Device Information
PART NUMBERPACKAGE(1)BODY SIZE (NOM)
BQ25895WQFN (24)4.00mm x 4.00mm
(1) For all available packages, see the orderable addendum at the end of the data sheet.

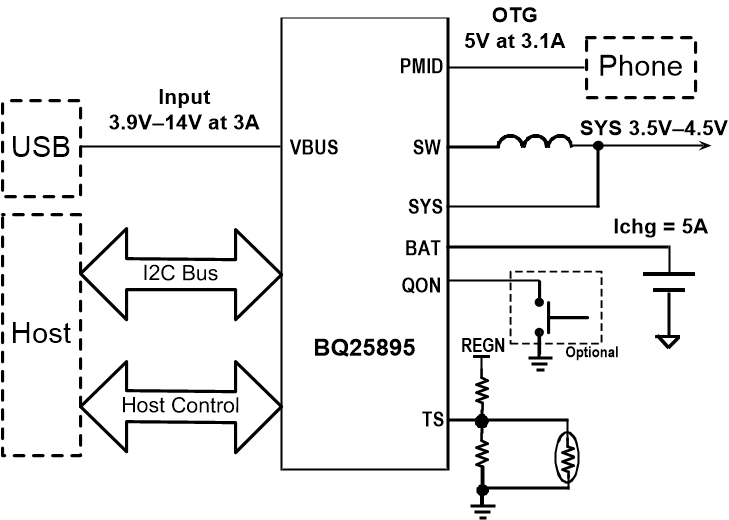

GUID-E6990451-8BEF-4AFF-B2EA-6B088CFC3F25-low.gif Simplified Schematic
