9.2.3 Application Curves

VBAT = 3.2 VIILIM = 500 mA

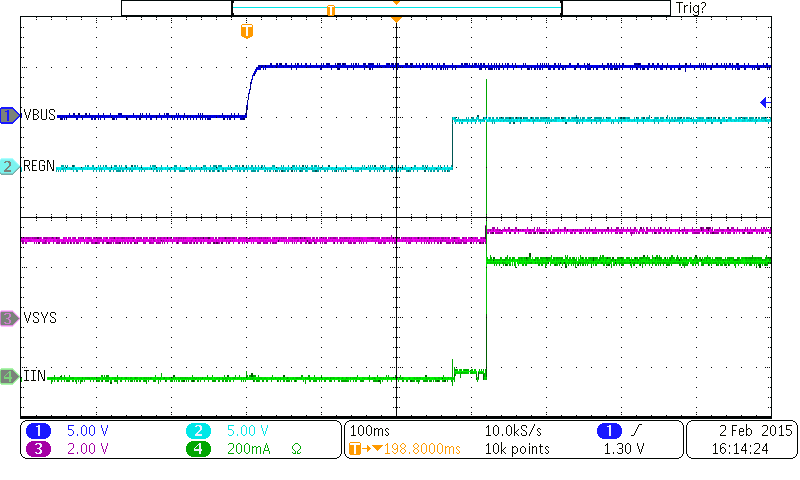

Figure 9-2 Power Up from USB100
VBAT = 3.2 V
Figure 9-4 Power Up with Charge Disabled
VBUS = 5 V
Figure 9-6 Charge Enable
VBUS = 5 VIIN = 3 ACharge Disable
Figure 9-8 Input Current DPM Response without Battery
VBUS = 12 VVBAT = 3.8 VICHG = 3 A
Figure 9-10 PWM Switching Waveform
VBAT = 3.8 VILOAD = 1 A
Figure 9-12 Boost Mode Switching Waveform
VBAT = 3.2 V
Figure 9-3 Power Up with Charge Disabled
Figure 9-5 Power Up with Charge Enabled
VBUS = 12 V
Figure 9-7 Charge Disable
VBUS = 9 VIIN = 1.5 AVBAT = 3.8 V
ICHG = 2 AISYS = 0 A - 4 A
Figure 9-9 Load Transient During Supplement Mode
VBUS = 9VISYS = 10 mA,Charge Disable
No Battery
Figure 9-11 PFM Switching Waveform
VBAT = 3.8 VILOAD = 0 A - 1 A
Figure 9-13 Boost Mode Load Transient
