9.2.16.6 Single Read and Write

bq25896 Single_Write_SLUSAW5.gifFigure 20. Single Write

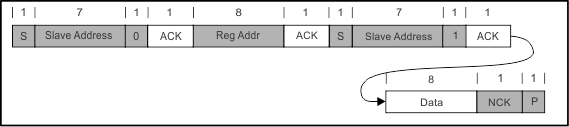

bq25896 Single_Read_SLUSAW5.gifFigure 21. Single Read

If the register address is not defined, the charger IC send back NACK and go back to the idle state.
