7.4.1 Operating Modes

The battery protector has several operating modes depending on a variety of conditions. These modes are described below:

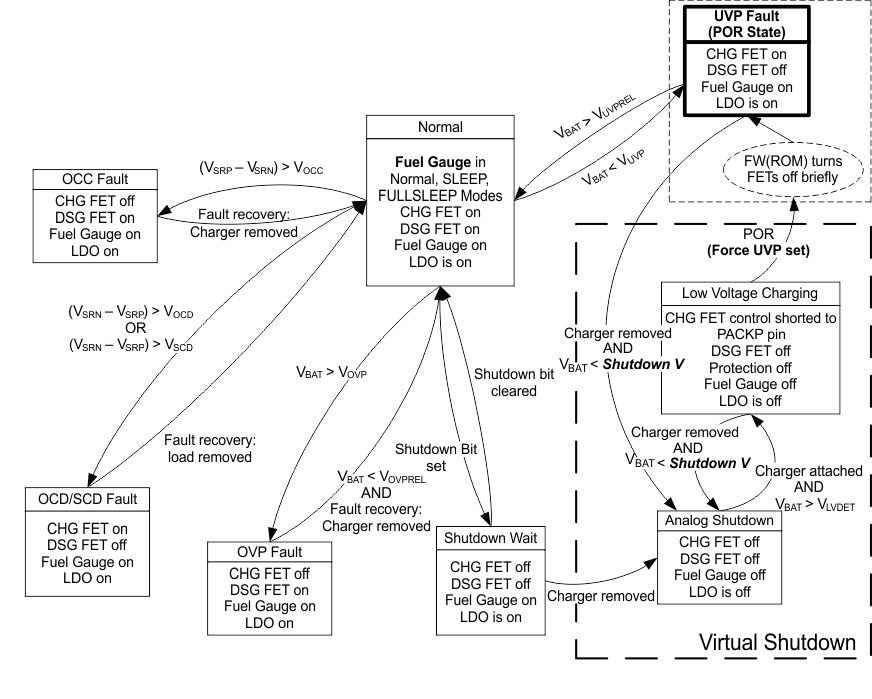

The relationships among these modes are shown in Figure 15.

bq27742-G1 protector_oprtg_modes_SLUSBV9.gifFigure 15. Operating Modes
