7.6
Typical Characteristics
Figure 7-1
Overvoltage Threshold (Nominal = 4.35 V) vs. Temperature
Figure 7-3
I
DD
Current Consumption vs.
Temperature at VDD = 16 V

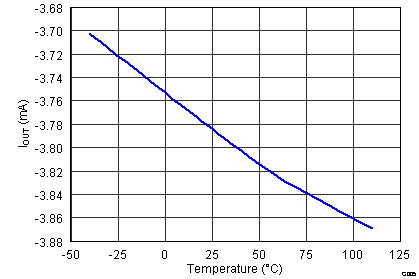

Figure 7-5
Output Current I
OUT
vs.
Temperature

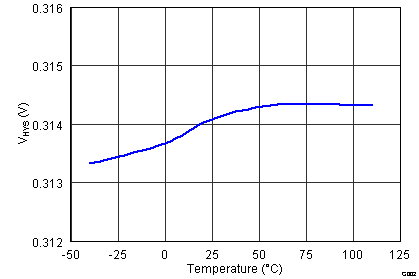

Figure 7-2
Hysteresis V
HYS
vs. Temperature
Figure 7-4
I
CELL
vs. Temperature
at V
CELL
= 9.2 V
Figure 7-6
V
OUT
vs. V
DD
