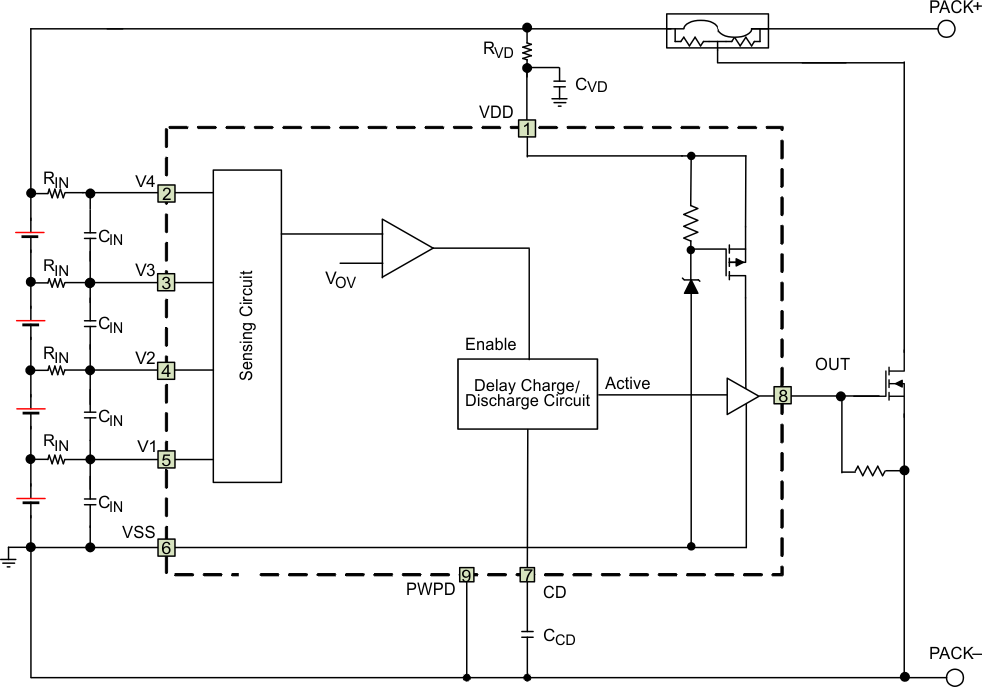

The Functional Block Diagram shows a CMOS Active High configuration.
In the case of an Open Drain Active Low configuration, an external pull-up resistor is required on the OUT terminal.
