11 Layout

11.1 Layout Guidelines

  • Keep the trace resistance as low as possible on AC1, AC2, and OUT.
  • Detection and resonant capacitors need to be as close to the device as possible.
  • COMM, CLAMP, and BOOT capacitors need to be placed as close to the device as possible.
  • Via interconnect on GND net is critical for appropriate signal integrity and proper thermal performance.
  • High-frequency bypass capacitors need to be placed close to RECT and OUT pins.
  • ILIM and FOD resistors are important signal paths and the loops in those paths to GND must be minimized.

    • Signal and sensing traces are the most sensitive to noise; the sensing signal amplitudes are usually measured in mV, which is comparable to the noise amplitude. Make sure that these traces are not being interfered by the noisy and power traces. AC1, AC2, BOOT1, BOOT2, COMM1, and COMM2 are the main source of noise in the board. These traces should be shielded from other components in the board. It is usually preferred to have a ground copper area placed underneath these traces to provide additional shielding. Also, make sure they do not interfere with the signal and sensing traces. The PCB should have a ground plane (return) connected directly to the return of all components through vias (two vias per capacitor for power-stage capacitors, one via per capacitor for small-signal components.

    For a 1.4-A fast-charge current application, the current rating for each net is as follows:

    • AC1 = AC2 = 2.2 A
    • OUT = 2.5 A
    • RECT = 200 mA (RMS)
    • COMMx = 600 mA
    • CLAMPx = 1000 mA
    • All others can be rated for 10 mA or less.

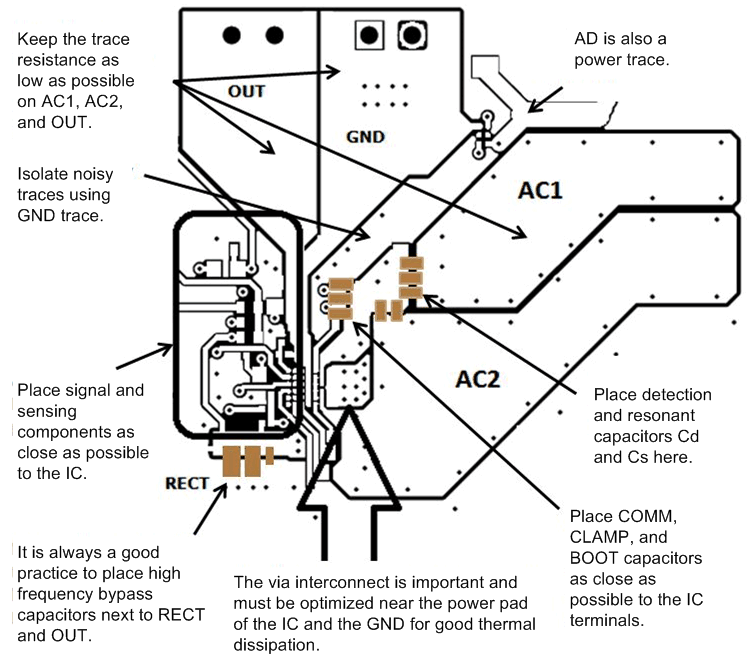

11.2 Layout Example

bq51025 layout_SLUSBS9.gif Figure 40. Layout Recommendation
