9.2.4 Application Performance Plots

When the bq78350-R1 device is powered up, there are several signals that are enabled at the same time. Figure 9 shows the rise time of each of the applicable signals.

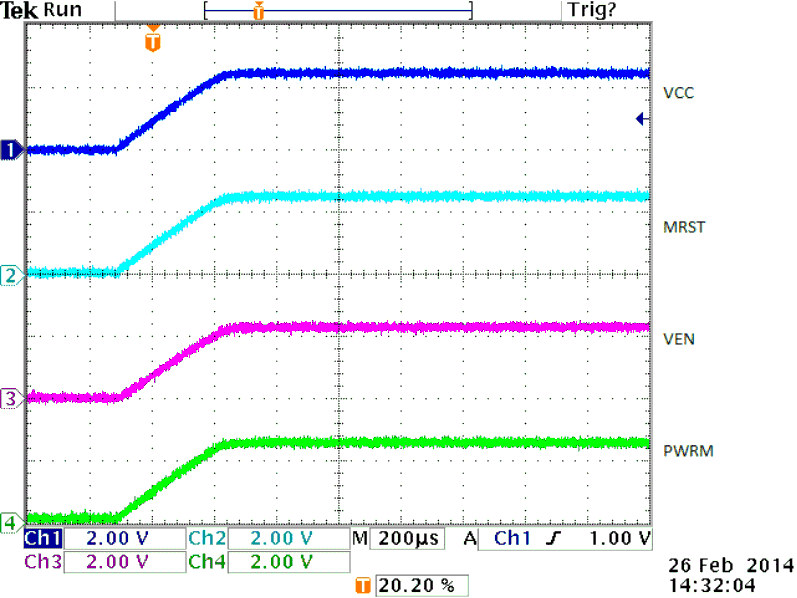

bq78350-R1 UponPowerUp.gifFigure 9. VCC, MRST, VEN, and PWRM upon Power Up

The bq78350-R1 device takes a short period of time to boot up before the device can begin updating battery parameter data that can be then reported via the SMBus or the optional display. Normal operation after boot-up is indicated by the VEN pin pulsing to enable voltage data measurements for the ExtAveCell() function. Figure 10 shows the timing of these signals.

bq78350-R1 FullFWOp.gifFigure 10. Valid VCC to Full FW Operation

Figure 11, Figure 12, Figure 13, and Figure 14 show Measurement System Performance Data of the bq78350-R1 device + the bq76920 EVM. This data was taken using a standard bq76920 EVM with power supplies providing the voltage and current reference inputs.

bq78350-R1 C006_SLUSB48.pngFigure 11. Cell Voltage Error Reported Through CellVoltage1…5()

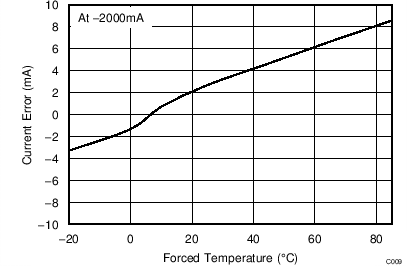

bq78350-R1 C009_SLUSB48.pngFigure 13. Battery Discharge Current Error Reported Through Current()

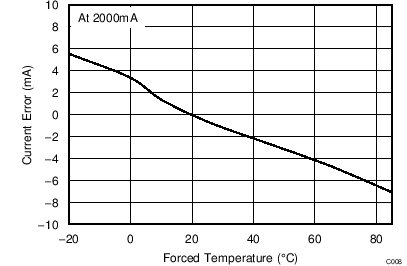

bq78350-R1 C008_SLUSB48.pngFigure 12. Battery Charge Current Error Reported Through Current()

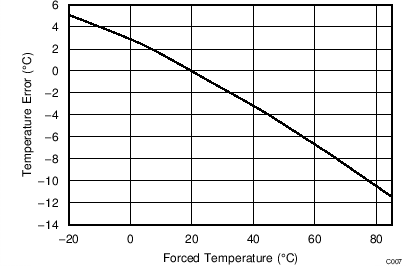

bq78350-R1 C007_SLUSB48.pngFigure 14. Battery Temperature (External) Error Reported Through Temperature()
