7.12 SMBus Timing Specifications

VCC = 2.4 V to 2.6 V, TA = –40°C to 85°C (unless otherwise noted)
PARAMETER TEST CONDITIONS MIN NOM MAX UNIT
fSMB SMBus operating frequency SLAVE mode, SMBC 50% duty cycle 10 100 kHz
fMAS SMBus master clock frequency MASTER mode, no clock low slave extend 51.2 kHz
tBUF Bus free time between start and stop 4.7 µs
tHD:STA Hold time after (repeated) start 4 µs
tSU:STA Repeated start setup time 4.7 µs
tSU:STO Stop setup time 4 µs
tHD:DAT Data hold time RECEIVE mode 0 ns
TRANSMIT mode 300
tSU:DAT Data setup time 250
tTIMEOUT Error signal/detect See note(1) 25 35 ms
tLOW Clock low period 4.7 µs
tHIGH Clock high period See note(2) 4 50
tLOW:SEXT Cumulative clock low slave extend time See note(3) 25 ms
tLOW:MEXT Cumulative clock low master extend time See note(4) 10
tF Clock/data fall time (VILMAX – 0.15 V) to (VIHMIN + 0.15 V) 300 ns
tR Clock/data rise time 0.9 VCC to (VILMAX – 0.15 V) 1000
(1) The bq78350-R1 device times out when any clock low exceeds tTIMEOUT.
(2) tHIGH:MAX is minimum bus idle time. SMBC = 1 for t > 50 μs causes a reset of any transaction in progress involving the bq78350-R1 device.
(3) tLOW:SEXT is the cumulative time a slave device is allowed to extend the clock cycles in one message from initial start to stop.
(4) tLOW:MEXT is the cumulative time a master device is allowed to extend the clock cycles in one message from initial start to stop.

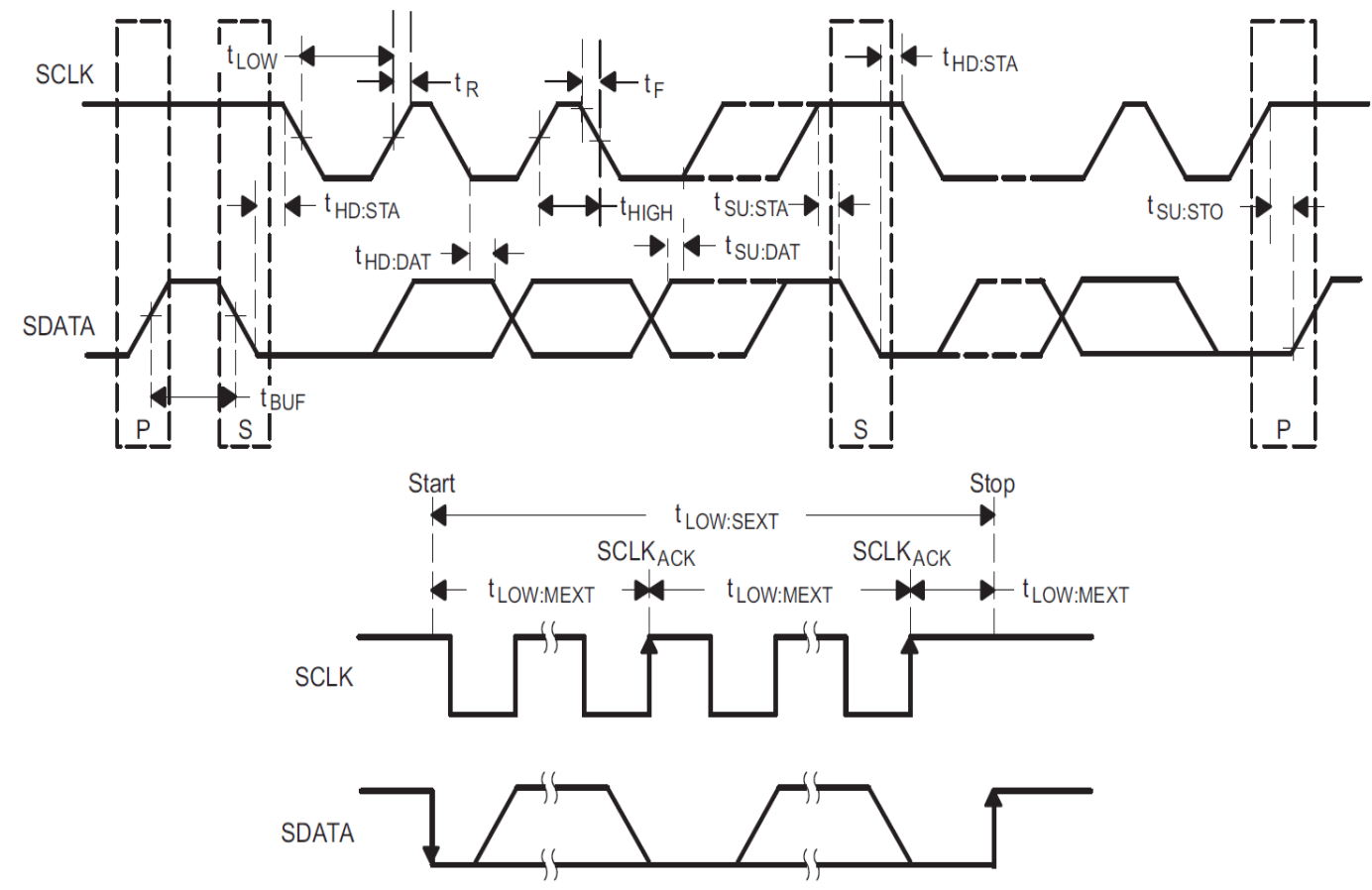

bq78350-R1 SBSTiming.gifFigure 1. SMBus Timing Diagram
