7 Specifications

7.1 Absolute Maximum Ratings

Over operating free-air temperature range (unless otherwise noted)(1)
MIN MAX UNIT
Supply voltage range, VCC VC2, PBI –0.3 30 V
Input voltage range, VIN PACK –0.3 30 V
TS1 –0.3 VREG + 0.3 V
SRP, SRN –0.3 0.3 V
VC2 VC1 – 0.3 VC1 + 8.5 or VSS + 30 V
VC1 VSS – 0.3 VSS + 8.5 or VSS + 30 V
Output voltage range, VO CHG, DSG –0.3 32 V
Maximum VSS current, ISS ±50 mA
Functional Temperature, TFUNC –40 110 °C
Lead temperature (soldering, 10 s), TSOLDER ±300
Storage temperature range, TSTG –65 150 °C
(1) Stresses beyond those listed under absolute maximum ratings may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under recommended operating conditions is not implied. Exposure to absolute–maximum–rated conditions for extended periods may affect device reliability.

7.2 ESD Ratings

VALUE UNIT
V(ESD) Electrostatic discharge Human body model (HBM), per ANSI/ESDA/JEDEC JS-001, all pins(1) ±2000 V
Charged device model (CDM), per JEDEC specification JESD22-C101, all pins(2) ±500
(1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
(2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.

7.3 Recommended Operating Conditions

Typical values stated where TA = 25ºC and VCC = 7.2 V, Min/Max values stated where TA = –40ºC to 85ºC and VCC = 2.2 V to 26 V (unless otherwise noted)
MIN NOM MAX UNIT
VCC Supply voltage VC2, PBI 2.2 26 V
VSHUTDOWN– Shutdown voltage VPACK < VSHUTDOWN– 1.8 2.0 2.2 V
VSHUTDOWN+ Start-up voltage VPACK > VSHUTDOWN– + VHYS 2.05 2.25 2.45 V
VHYS Shutdown voltage hysteresis VSHUTDOWN+ – VSHUTDOWN– 250 mV
VIN Input voltage range SDA/HDQ, SCL 5.5 V
TS1 VREG
SRP, SRN –0.2 0.2
VC2 VVC1 VVC1 + 5
VC1 VVSS VVSS + 5
PACK 26
VO Output voltage range CHG, DSG 26 V
CPBI External PBI capacitor 2.2 µF
TOPR Operating temperature –40 85 °C

Thermal Information

over operating free-air temperature range (unless otherwise noted)
THERMAL METRIC(1) bq78z100 UNIT
DRZ
12 PINS
RθJA, High K Junction-to-ambient thermal resistance 186.4 °C/W
RθJC(top) Junction-to-case(top) thermal resistance 90.4
RθJB Junction-to-board thermal resistance 110.7
ψJT Junction-to-top characterization parameter 96.7
ψJB Junction-to-board characterization parameter 90
RθJC(bottom) Junction-to-case(bottom) thermal resistance n/a
(1) For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report, SPRA953.

7.4 Supply Current

Typical values stated where TA = 25ºC and VCC = 7.2 V, Min/Max values stated where TA = –40ºC to 85ºC and VCC = 2.2 V to 7.6 V (unless otherwise noted)
PARAMETER TEST CONDITION MIN TYP MAX UNIT
INORMAL NORMAL mode CHG = ON, DSG = ON, No Flash Write and CPU = ON 400 500 µA
CHG = ON, DSG = ON, No Flash Write and CPU = Halted 250 300
ISLEEP SLEEP mode CHG = OFF, DSG = ON, No Communication on Bus 90 160 µA
CHG = OFF, DSG = OFF, No Communication on Bus 38 120
ISHUTDOWN SHUTDOWN mode 0.5 2 µA

7.5 Power Supply Control

Typical values stated where TA = 25ºC and VCC = 7.2 V, Min/Max values stated where TA = –40ºC to 85ºC and VCC = 2.2 V to 7.6 V (unless otherwise noted)
PARAMETER TEST CONDITION MIN TYP MAX UNIT
VSWITCHOVER– VC2 to PACK switchover voltage VVC2 < VSWITCHOVER– 2.0 2.1 2.2 V
VSWITCHOVER+ PACK to VC2 switchover voltage VVC2 > VSWITCHOVER– + VHYS 3.0 3.1 3.2 V
VHYS Switchover voltage hysteresis VSWITCHOVER+ – VSWITCHOVER– 1000 mV
ILKG Input Leakage current VC2 pin, VC2 = 0 V, PACK = 25 V 1 µA
PACK pin, VC2 = 25 V, PACK = 0 V 1
VC2 and PACK pins, VC2 = 0 V, PACK = 0 V, PBI = 25 V 1
RPACK(PD) Internal pulldown resistance PACK 30 40 50 kΩ

7.6 Low-Voltage General Purpose I/O, TS1

Typical values stated where TA = 25ºC and VCC = 7.2 V, Min/Max values stated where TA = –40ºC to 85ºC and VCC = 2.2 V to 7.6 V (unless otherwise noted)
PARAMETER TEST CONDITION MIN TYP MAX UNIT
VIH High-level input 0.65 x VREG V
VIL Low-level input 0.35 x VREG V
VOH Output voltage high IOH = – 1.0 mA 0.75 x VREG V
VOL Output voltage low IOL = 1.0 mA 0.2 x VREG V
CIN Input capacitance 5 pF
ILKG Input leakage current 1 µA

7.7 Power-On Reset (POR)

Typical values stated where TA = 25ºC and VCC = 7.2 V, Min/Max values stated where TA = –40ºC to 85ºC and VCC = 2.2 V to 7.6 V (unless otherwise noted)
PARAMETER TEST CONDITION MIN TYP MAX UNIT
VREGIT– Negative-going voltage input VREG 1.51 1.55 1.59 V
VHYS Power-on reset hysteresis VREGIT+ – VREGIT– 70 100 130 mV
tRST Power-on reset time 200 300 400 µs

7.8 Internal 1.8-V LDO

Typical values stated where TA = 25ºC and VCC = 7.2 V, Min/Max values stated where TA = –40ºC to 85ºC and VCC = 2.2 V to 7.6 V (unless otherwise noted)
PARAMETER TEST CONDITION MIN TYP MAX UNIT
VREG Regulator voltage 1.6 1.8 2.0 V
ΔVO(TEMP) Regulator output over temperature ΔVREG/ΔTA, IREG = 10 mA ±0.25%
ΔVO(LINE) Line regulation ΔVREG/ΔVBAT, VBAT = 10 mA –0 .6% 0.5%
ΔVO(LOAD) Load regulation ΔVREG/ΔIREG, IREG = 0 mA to 10 mA –1.5% 1.5%
IREG Regulator output current limit VREG = 0.9 x VREG(NOM), VIN > 2.2 V 20 mA
ISC Regulator short-circuit current limit VREG = 0 x VREG(NOM) 25 40 50 mA
PSRRREG Power supply rejection ratio ΔVBAT/ΔVREG, IREG = 10 mA, VIN > 2.5 V, f = 10 Hz 40 dB
VSLEW Slew rate enhancement voltage threshold VREG 1.58 1.65 V

7.9 Current Wake Comparator

Typical values stated where TA = 25ºC and VCC = 7.2 V, Min/Max values stated where TA = –40ºC to 85ºC and VCC = 2.2 V to 7.6 V (unless otherwise noted)
PARAMETER TEST CONDITION MIN TYP MAX UNIT
VWAKE Wake voltage threshold VWAKE = VSRP – VSRN WAKE_CONTROL[WK1, WK0] = 0,0 ±0.3 ±0.625 ±0.9 mV
VWAKE = VSRP – VSRN WAKE_CONTROL[WK1, WK0] = 0,1 ±0.6 ±1.25 ±1.8 mV
VWAKE = VSRP – VSRN WAKE_CONTROL[WK1, WK0] = 1,0 ±1.2 ±2.5 ±3.6 mV
VWAKE = VSRP – VSRN WAKE_CONTROL[WK1, WK0] = 1,1 ±2.4 ±5.0 ±7.2 mV
VWAKE(DRIFT) Temperature drift of VWAKE accuracy 0.5% °C
tWAKE Time from application of current to wake 0.25 0.5 ms
tWAKE(SU) Wake up comparator startup time [WKCHGEN] = 0 and [WKDSGEN] = 0 to [WKCHGEN] = 1 and [WKDSGEN] = 1 250 640 µs

7.10 Coulomb Counter

Typical values stated where TA = 25ºC and VCC = 7.2 V, Min/Max values stated where TA = –40ºC to 85ºC and VCC = 2.2 V to 7.6 V (unless otherwise noted)
PARAMETER TEST CONDITION MIN TYP MAX UNIT
Input voltage range –100 100 mV
Full scale range –VREF1/10 +VREF1/10 mV
Differential nonlinearity 16-bit, No missing codes ±1 LSB
Integral nonlinearity 16-bit, Best fit over input voltage range ±5.2 ±22.3 LSB
Offset error 16-bit, Post-calibration ±1.3 ±2.6 LSB
Offset error drift 15-bit + sign, Post-calibration 0.04 0.07 LSB/°C
Gain error 15-bit + sign, Over input voltage range ±131 ±492 LSB
Gain error drift 15-bit + sign, Over input voltage range 4.3 9.8 LSB/°C
Effective input resistance 2.5 MΩ

7.11 ADC Digital Filter

Typical values stated where TA = 25ºC and VCC = 7.2 V, Min/Max values stated where TA = –40ºC to 85ºC and VCC = 2.2 V to 7.6 V (unless otherwise noted)
PARAMETER TEST CONDITION MIN TYP MAX UNIT
tCONV ADCTL[SPEED1, SPEED0] = 0, 0 31.25 ms
ADCTL[SPEED1, SPEED0] = 0, 1 15.63
ADCTL[SPEED1, SPEED0] = 1, 0 7.81
ADCTL[SPEED1, SPEED0] = 1, 1 1.95
Resolution No missing codes, ADCTL[SPEED1, SPEED0] = 0, 0 16 Bits
Effective resolution With sign, ADCTL[SPEED1, SPEED0] = 0, 0 14 15 Bits
With sign, ADCTL[SPEED1, SPEED0] = 0, 1 13 14
With sign, ADCTL[SPEED1, SPEED0] = 1, 0 11 12
With sign, ADCTL[SPEED1, SPEED0] = 1, 1 9 10

7.12 ADC Multiplexer

Typical values stated where TA = 25ºC and VCC = 7.2 V, Min/Max values stated where TA = –40ºC to 85ºC and VCC = 2.2 V to 7.6 V (unless otherwise noted)
PARAMETER TEST CONDITION MIN TYP MAX UNIT
K Scaling factor VC1–VSS, VC2–VC1 0.1980 0.2000 0.2020 —
VC2–VSS, PACK–VSS 0.0485 0.050 0.051
VREF1/2 0.490 0.500 0.510
VIN Input voltage range VC2–VSS, PACK–VSS –0.2 20 V
TS1 –0.2 0.8 × VREF1
TS1 –0.2 0.8 × VREG
ILKG Input leakage current VC1, VC2 cell balancing off, cell detach detection off, ADC multiplexer off 1 µA

7.13 Cell Balancing Support

Typical values stated where TA = 25ºC and VCC = 7.2 V, Min/Max values stated where TA = –40ºC to 85ºC and VCC = 2.2 V to 7.6 V (unless otherwise noted)
PARAMETER TEST CONDITION MIN TYP MAX UNIT
RCB Internal cell balance resistance RDS(ON) for internal FET switch at 2 V < VDS < 4 V 200 Ω

7.14 Internal Temperature Sensor

Typical values stated where TA = 25ºC and VCC = 7.2 V, Min/Max values stated where TA = –40ºC to 85ºC and VCC = 2.2 V to 7.6 V (unless otherwise noted)
PARAMETER TEST CONDITION MIN TYP MAX UNIT
VTEMP Internal temperature sensor voltage drift VTEMPP –1.9 –2.0 –2.1 mV/°C
VTEMPP – VTEMPN (1) 0.177 0.178 0.179
(1) Assured by design

7.15 NTC Thermistor Measurement Support

Typical values stated where TA = 25ºC and VCC = 7.2 V, Min/Max values stated where TA = –40ºC to 85ºC and VCC = 2.2 V to 7.6 V (unless otherwise noted)
PARAMETER TEST CONDITION MIN TYP MAX UNIT
RNTC(PU) Internal pull-up resistance TS1 14.4 18 21.6 kΩ
RNTC(DRIFT) Resistance drift over temperature TS1 –360 –280 –200 PPM/°C

7.16 High-Frequency Oscillator

Typical values stated where TA = 25ºC and VCC = 7.2 V, Min/Max values stated where TA = –40ºC to 85ºC and VCC = 2.2 V to 7.6 V (unless otherwise noted)
PARAMETER TEST CONDITION MIN TYP MAX UNIT
fHFO Operating frequency 16.78 MHz
fHFO(ERR) Frequency error TA = –20°C to 70°C, includes frequency drift –2.5% ±0.25% 2.5%
TA = –40°C to 85°C, includes frequency drift –3.5% ±0.25% 3.5%
tHFO(SU) Start-up time TA = –20°C to 85°C, Oscillator frequency within +/–3% of nominal, CLKCTL[HFRAMP] = 1 4 ms
Oscillator frequency within +/–3% of nominal, CLKCTL[HFRAMP] = 0 100 µs

7.17 Low-Frequency Oscillator

Typical values stated where TA = 25ºC and VCC = 7.2 V, Min/Max values stated where TA = –40ºC to 85ºC and VCC = 2.2 V to 7.6 V (unless otherwise noted)
PARAMETER TEST CONDITION MIN TYP MAX UNIT
fLFO Operating frequency 262.144 kHz
fLFO(LP) Operating frequency in low power mode 247 kHz
fLFO(ERR) Frequency error TA = –20°C to 70°C, includes frequency drift –1.5% ±0.25% 1.5%
TA = –40°C to 85°C, includes frequency drift –2.5% ±0.25% 2.5%
fLFO(LPERR) Frequency error in low power mode –5% 5%
fLFO(FAIL) Failure detection frequency 30 80 100 kHz

7.18 Voltage Reference 1

Typical values stated where TA = 25ºC and VCC = 7.2 V, Min/Max values stated where TA = –40ºC to 85ºC and VCC = 2.2 V to 7.6 V (unless otherwise noted)
PARAMETER TEST CONDITION MIN TYP MAX UNIT
VREF1 Internal reference voltage TA = 25°C, after trim 1.215 1.220 1.225 V
VREF1(DRIFT) Internal reference voltage drift TA = 0°C to 60°C, after trim ±50 PPM/°C
TA = –40°C to 85°C, after trim ±80

7.19 Voltage Reference 2

Typical values stated where TA = 25ºC and VCC = 7.2 V, Min/Max values stated where TA = –40ºC to 85ºC and VCC = 2.2 V to 7.6 V (unless otherwise noted)
PARAMETER TEST CONDITION MIN TYP MAX UNIT
VREF2 Internal reference voltage TA = 25°C, after trim 1.215 1.220 1.225 V
VREF2(DRIFT) Internal reference voltage drift TA = 0°C to 60°C, after trim ±50 PPM/°C
TA = –40°C to 85°C, after trim ±80

7.20 Instruction Flash

Typical values stated where TA = 25ºC and VCC = 7.2 V, Min/Max values stated where TA = –40ºC to 85ºC and VCC = 2.2 V to 7.6 V (unless otherwise noted)
PARAMETER TEST CONDITION MIN TYP MAX UNIT
Data retention 10 Years
Flash programming write cycles 1000 Cycles
tPROGWORD Word programming time TA = –40°C to 85°C 40 µs
tMASSERASE Mass-erase time TA = –40°C to 85°C 40 ms
tPAGEERASE Page-erase time TA = –40°C to 85°C 40 ms
IFLASHREAD Flash-read current TA = –40°C to 85°C 2 mA
IFLASHWRITE Flash-write current TA = –40°C to 85°C 5 mA
IFLASHERASE Flash-erase current TA = –40°C to 85°C 15 mA

7.21 Data Flash

Typical values stated where TA = 25ºC and VCC = 7.2 V, Min/Max values stated where TA = –40ºC to 85ºC and VCC = 2.2 V to 7.6 V (unless otherwise noted)
PARAMETER TEST CONDITION MIN TYP MAX UNIT
Data retention 10 Years
Flash programming write cycles 20000 Cycles
tPROGWORD Word programming time TA = –40°C to 85°C 40 µs
tMASSERASE Mass-erase time TA = –40°C to 85°C 40 ms
tPAGEERASE Page-erase time TA = –40°C to 85°C 40 ms
IFLASHREAD Flash-read current TA = –40°C to 85°C 1 mA
IFLASHWRITE Flash-write current TA = –40°C to 85°C 5 mA
IFLASHERASE Flash-erase current TA = –40°C to 85°C 15 mA

7.22 Current Protection Thresholds

Typical values stated where TA = 25ºC and VCC = 7.2 V, Min/Max values stated where TA = –40ºC to 85ºC and VCC = 2.2 V to 7.6 V (unless otherwise noted)
PARAMETER TEST CONDITION MIN TYP MAX UNIT
VOCD OCD detection threshold voltage range VOCD = VSRP – VSRN, PROTECTION_CONTROL[RSNS] = 1 –16.6 –100 mV
VOCD = VSRP – VSRN, PROTECTION_CONTROL[RSNS] = 0 –8.3 –50
ΔVOCD OCD detection threshold voltage program step VOCD = VSRP – VSRN, PROTECTION_CONTROL[RSNS] = 1 –5.56 mV
VOCD = VSRP – VSRN, PROTECTION_CONTROL[RSNS] = 0 –2.78
ΔVSCC SCC detection threshold voltage range VSCC = VSRP – VSRN, PROTECTION_CONTROL[RSNS] = 1 44.4 200 mV
VSCC = VSRP – VSRN, PROTECTION_CONTROL[RSNS] = 0 22.2 100
ΔVSCC SCC detection threshold voltage program step VSCC = VSRP – VSRN, PROTECTION_CONTROL[RSNS] = 1 22.2 mV
VSCC = VSRP – VSRN, PROTECTION_CONTROL[RSNS] = 0 11.1
VSCD1 SCD1 detection threshold voltage range VSCD1 = VSRP – VSRN, PROTECTION_CONTROL[RSNS] = 1 –44.4 –200 mV
VSCD1 = VSRP – VSRN, PROTECTION_CONTROL[RSNS] = 0 –22.2 –100
ΔVSCD1 SCD1 detection threshold voltage program step VSCD1 = VSRP – VSRN, PROTECTION_CONTROL[RSNS] = 1 –22.2 mV
VSCD1 = VSRP – VSRN, PROTECTION_CONTROL[RSNS] = 0 –11.1
VSCD2 SCD2 detection threshold voltage range VSCD2 = VSRP – VSRN, PROTECTION_CONTROL[RSNS] = 1 –44.4 –200 mV
VSCD2 = VSRP – VSRN, PROTECTION_CONTROL[RSNS] = 0 –22.2 –100
ΔVSCD2 SCD2 detection threshold voltage program step VSCD2 = VSRP – VSRN, PROTECTION_CONTROL[RSNS] = 1 –22.2 mV
VSCD2 = VSRP – VSRN, PROTECTION_CONTROL[RSNS] = 0 –11.1

7.23 Current Protection Timing

Typical values stated where TA = 25ºC and VCC = 7.2 V, Min/Max values stated where TA = –40ºC to 85ºC and VCC = 2.2 V to 7.6 V (unless otherwise noted)
PARAMETER TEST CONDITION MIN TYP MAX UNIT
tOCD OCD detection delay time 1 31 ms
ΔtOCD OCD detection delay time program step 2 ms
tSCC SCC detection delay time 0 915 µs
ΔtSCC SCC detection delay time program step 61 µs
tSCD1 SCD1 detection delay time PROTECTION_CONTROL[SCDDx2] = 0 0 915 µs
PROTECTION_CONTROL[SCDDx2] = 1 0 1850
ΔtSCD1 SCD1 detection delay time program step PROTECTION_CONTROL[SCDDx2] = 0 61 µs
PROTECTION_CONTROL[SCDDx2] = 1 121
tSCD2 SCD2 detection delay time PROTECTION_CONTROL[SCDDx2] = 0 0 458 µs
PROTECTION_CONTROL[SCDDx2] = 1 0 915
ΔtSCD2 SCD2 detection delay time program step PROTECTION_CONTROL[SCDDx2] = 0 30.5 µs
PROTECTION_CONTROL[SCDDx2] = 1 61
tDETECT Current fault detect time VSRP – VSRN = VT – 3 mV for OCD, SCD1, and SC2, VSRP – VSRN = VT + 3 mV for SCC 160 µs
tACC Current fault delay time accuracy Max delay setting –10% 10%

7.24 N-CH FET Drive (CHG, DSG)

Typical values stated where TA = 25ºC and VCC = 7.2 V, Min/Max values stated where TA = –40ºC to 85ºC and VCC = 2.2 V to 7.6 V (unless otherwise noted)
PARAMETER TEST CONDITION MIN TYP MAX UNIT
Output voltage ratio RatioDSG = (VDSG – VVC2)/VVC2, 2.2 V < VVC2 < 4.07 V, 10 MΩ between PACK and DSG 2.133 2.333 2.467 —
RatioCHG = (VCHG – VVC2)/VVC2, 2.2 V < VVC2 < 4.07 V, 10 MΩ between BAT and CHG 2.133 2.333 2.467
V(FETON) Output voltage, CHG and DSG on VDSG(ON) = VDSG – VVC2, VVC2 ≥ 4.07 V, 10 MΩ between PACK and DSG, VVC2 = 18 V 8.75 9.5 10.25 V
VCHG(ON) = VCHG – VVC2, VVC2 ≥ 4.07 V, 10 MΩ between VC2 and CHG, VVC2 = 18 V 8.75 9.5 10.25
V(FETOFF) Output voltage, CHG and DSG off VDSG(OFF) = VDSG – VPACK, 10 MΩ between PACK and DSG –0.4 0.4 V
VCHG(OFF) = VCHG – VBAT, 10 MΩ between VC2 and CHG –0.4 0.4
tR Rise time VDSG from 0% to 35% VDSG(ON)(TYP), VBAT ≥ 2.2 V, CL = 4.7 nF between DSG and PACK, 5.1 kΩ between DSG and CL, 10 MΩ between PACK and DSG 200 500 µs
VCHG from 0% to 35% VCHG(ON)(TYP), VVC2 ≥ 2.2 V, CL = 4.7 nF between CHG and VC2, 5.1 kΩ between CHG and CL, 10 MΩ between VC2 and CHG 200 500
tF Fall time VDSG from VDSG(ON)(TYP) to 1 V, VVC2 ≥ 2.2 V, CL = 4.7 nF between DSG and PACK, 5.1 kΩ between DSG and CL, 10 MΩ between PACK and DSG 40 300 µs
VCHG from VCHG(ON)(TYP) to 1 V, VVC2 ≥ 2.2 V, CL = 4.7 nF between CHG and VC2, 5.1 kΩ between CHG and CL, 10 MΩ between VC2 and CHG 40 200

7.25 I2C and HDQ Interface I/O

Typical values stated where TA = 25ºC and VCC = 7.2 V, Min/Max values stated where TA = –40ºC to 85ºC and VCC = 2.2 V to 7.6 V (unless otherwise noted)
PARAMETER TEST CONDITION MIN TYP MAX UNIT
VIH Input voltage high SCL, SDA, VREG = 1.8 V (STANDARD and FAST modes) 0.7 × VREG V
VIL Input voltage low SCL, SDA, VREG = 1.8 V (STANDARD and FAST modes) –0.5 0.3 × VREG V
VOL Output low voltage SCL, SDA, VREG = 1.8 V, IOL = 3 mA (FAST mode) 0.2 × VREG V
SCL, SDA, VREG > 2.0 V, IOL = 3 mA (STANDARD and FAST modes) 0.4 V
CIN Input capacitance 10 pF
ILKG Input leakage current 1 µA
RPD Pull-down resistance 3.3 kΩ

7.26 I2C Interface Timing

Typical values stated where TA = 25ºC and VCC = 7.2 V, Min/Max values stated where TA = –40ºC to 85ºC and VCC = 2.2 V to 7.6 V (unless otherwise noted)
MIN NOM MAX UNIT
tR Clock rise time 10% to 90% 300 ns
tF Clock fall time 90% to 10% 300 ns
tHIGH Clock high period 600 ns
tLOW Clock low period 1.3 µs
tSU(START) Repeated start setup time 600 ns
td(START) Start for first falling edge to SCL 600 ns
tSU(DATA) Data setup time 100 ns
tHD(DATA) Data hold time 0 µs
tSU(STOP) Stop setup time 600 ns
tBUF Bus free time between stop and start 1.3 µs
fSW Clock operating frequency SLAVE mode, SCL 50% duty cycle 400 kHz
bq78z100 i2c_comp_lus815.gif Figure 1. I2C Timing

7.27 HDQ Interface Timing

TA = –40 to +85°C, VBAT = 2.7 V to 5.5 V; Typical values stated, where TA = 25°C and VBAT = 3.6 V (unless otherwise noted). Capacitance on HDQ is 10 pF unless otherwise specified
MIN NOM MAX UNIT
t(CYCH) Cycle time, Host to Slave 190 500 µs
t(CYCD) Cycle time, Slave to Host 190 205 250 µs
t(HW1) Host sends 1 to Slave 0.5 50 µs
t(DW1) Slave sends 1 to Host 32 50 µs
t(HW0) Host sends 0 to Slave 86 145 µs
t(DW0) Slave sends 0 to Host 80 145 µs
t(RSPS) Response time, Slave to Host 190 950 µs
t(B) Break Time 190 µs
t(BR) Break Recovery Time 40 µs
t(R) HDQ Line Rise Time to Logic 1 (1.2 V) 950 ns
t(RST) HDQ Reset 1.8 2.2 s

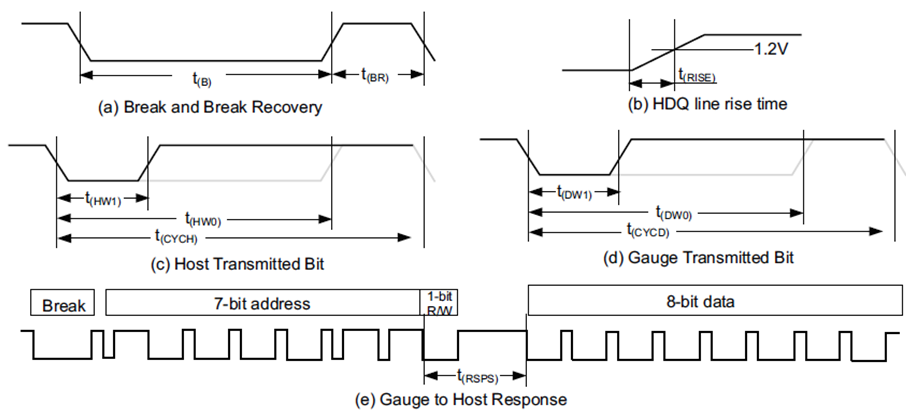

bq78z100 HDQ_Timing.png Figure 2. HDQ Timing

7.28 Typical Characteristics

bq78z100 C001_SLUSAS3.png
Figure 3. CC Offset Error vs.Temperature
bq78z100 C006_SLUSAS3.png

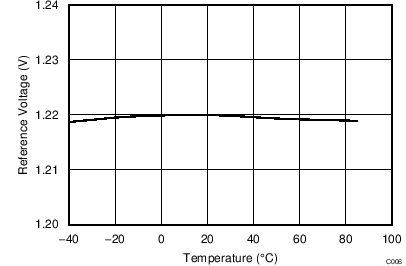

Figure 5. Reference Voltage vs.Temperature
bq78z100 C008_SLUSAS3.png
Figure 7. High-Frequency Oscillator vs.Temperature
bq78z100 C010_SLUSAS3.png
Threshold setting is 25 mV.
Figure 9. Short Circuit Charge Protection Threshold vs.Temperature

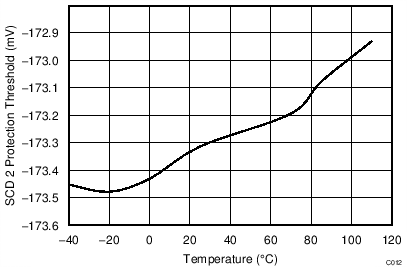

bq78z100 C012_SLUSAS3.png
Threshold setting is –177.7 mV.
Figure 11. Short Circuit Discharge 2 Protection Threshold vs.Temperature
bq78z100 C014_SLUSAS3.png
Threshold setting is 465 µs.

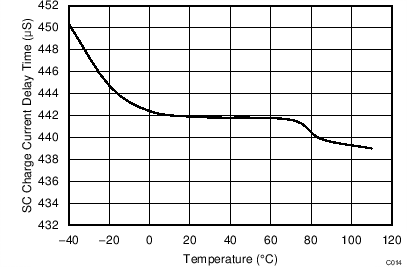

Figure 13. Short Circuit Charge Current Delay Time vs.Temperature
bq78z100 C016_SLUSAS3.png

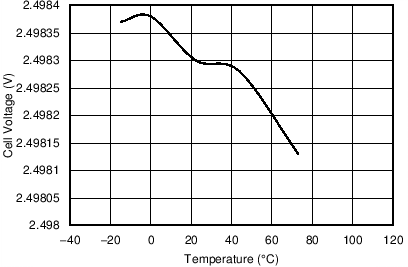

Figure 15. VCELL Measurement at 2.5-V vs.Temperature
bq78z100 C018_SLUSAS3.png
This is the VCELL average for single cell.
Figure 17. VCELL Measurement at 4.25-V vs.Temperature
bq78z100 C003_SLUSAS3.png

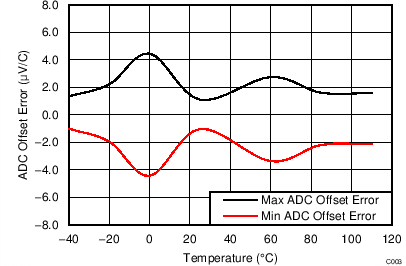

Figure 4. ADC Offset Error vs.Temperature

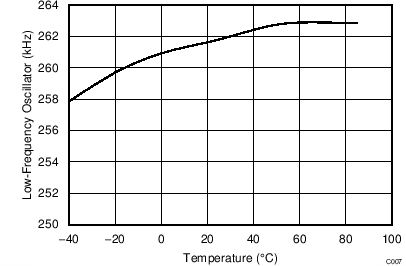

bq78z100 C007_SLUSAS3.png
Figure 6. Low-Frequency Oscillator vs.Temperature
bq78z100 C009_SLUSAS3.png
Threshold setting is 25 mV.
Figure 8. Overcurrent Discharge Protection Threshold vs.Temperature
bq78z100 C011_SLUSAS3.png
Threshold setting is –88.85 mV.
Figure 10. Short Circuit Discharge 1 Protection Threshold vs.Temperature
bq78z100 C013_SLUSAS3.png

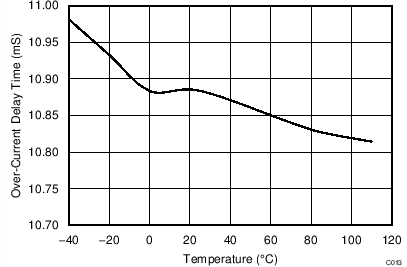

Threshold setting is 11 ms.
Figure 12. Overcurrent Delay Time vs.Temperature
bq78z100 C015_SLUSAS3.png
Threshold setting is 465 µs (including internal delay).

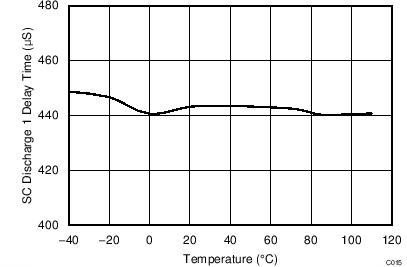

Figure 14. Short Circuit Discharge 1 Delay Time vs.Temperature
bq78z100 C017_SLUSAS3.png
This is the VCELL average for single cell.

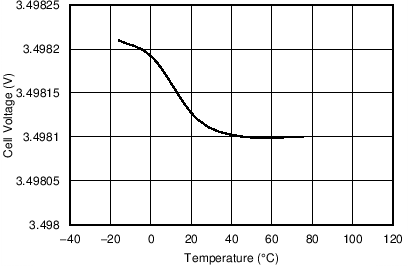

Figure 16. VCELL Measurement at 3.5-V vs.Temperature

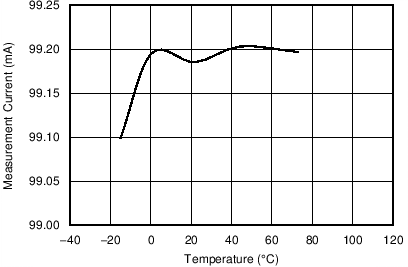

bq78z100 C019_SLUSAS3.png
ISET = 100 mA
Figure 18. I Measured vs.Temperature
