8.18.2 SPI Host Interface

The device interfaces to an external host using the SPI interface. The CC3135 device can interrupt the host using the HOST_INTR line to initiate the data transfer over the interface. The SPI host interface can work up to a speed of 20 MHz.

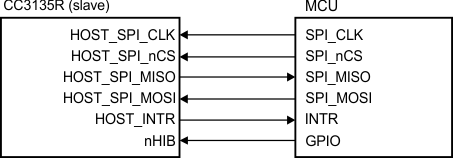

Figure 8-17 shows the SPI host interface.

GUID-92F6A279-96EA-4EA0-BB56-A7DFEB2FF93F-low.gifFigure 8-17 SPI Host Interface



Table 8-23 lists the SPI host interface pins.

Table 8-23 SPI Host Interface
PIN NAMEDESCRIPTION
HOST_SPI_CLKClock (up to 20 MHz) from MCU host to CC3135 device
HOST_SPI_nCSCS (active low) signal from MCU host to CC3135 device
HOST_SPI_MOSIData from MCU host to CC3135 device
HOST_INTRInterrupt from CC3135 device to MCU host
HOST_SPI_MISOData from CC3135 device to MCU host
nHIBActive-low signal that commands the CC3135 device to enter hibernate mode (lowest power state)
